DIN PN40 Steel Flat Faced Slip-On Flange - 12 Inches

Name: DIN PN40 Steel Flat Faced Slip-On Flange - 12 Inches
Brand: World Wide Metric, Inc.
SKU: FLA-17650b
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-17650b

High-quality DIN PN40 Steel Slip-On Flange for industrial piping, PN 40 pressure rating, 12" size, Carbon Steel material, 16 bolts, IMPA/ISSA Code: 735586.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

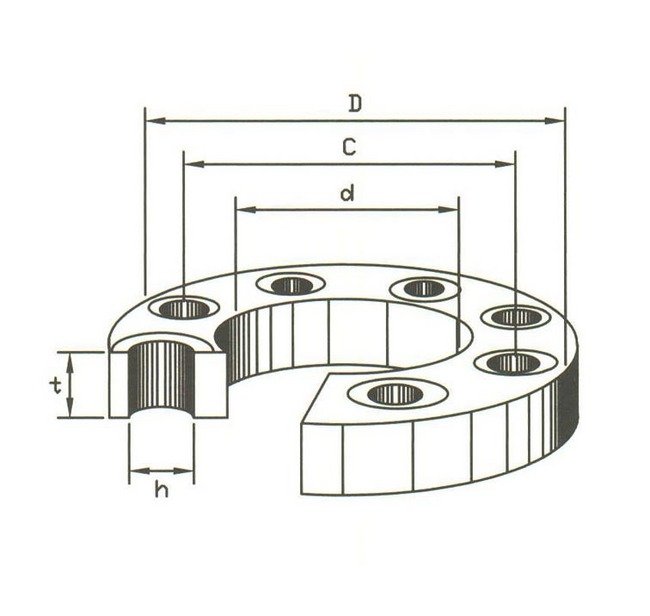

The Flat Faced Slip-On Flanges DIN PN40 Steel is a vital component in industrial piping systems, offering a durable connection suitable for high-pressure applications. Crafted from sturdy Carbon Steel and meeting IMPA/ISSA Code: 735586, it ensures reliability and longevity. With a size of 300 (12") and a pressure rating of PN 40, this flange guarantees a secure fit with 16 bolts for added stability. The precision engineering of this flange, with dimensions d: 323.9 mm, D: 515 mm, C: 450 mm, and weight 25.80 kg, makes it an ideal choice for projects requiring top-quality components.

Product Specifications

Specifications C

450 mm

Specifications D

515 mm

Specifications H

33 mm

Specifications Impaissa Code

735586

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

300 - 12"

Specifications T

52 mm

Specifications Weight

25.80 kg
