DIN PN40 Steel Slip-On Flange, 250mm, Carbon Steel

Name: DIN PN40 Steel Slip-On Flange, 250mm, Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FLA-ff7d1c
Price: 129.99 USD
Availability: OutOfStock

SKU:FLA-ff7d1c

High-quality DIN PN40 Steel Slip-On Flange in 250mm size, PN 40 pressure rating, ideal for industrial use.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

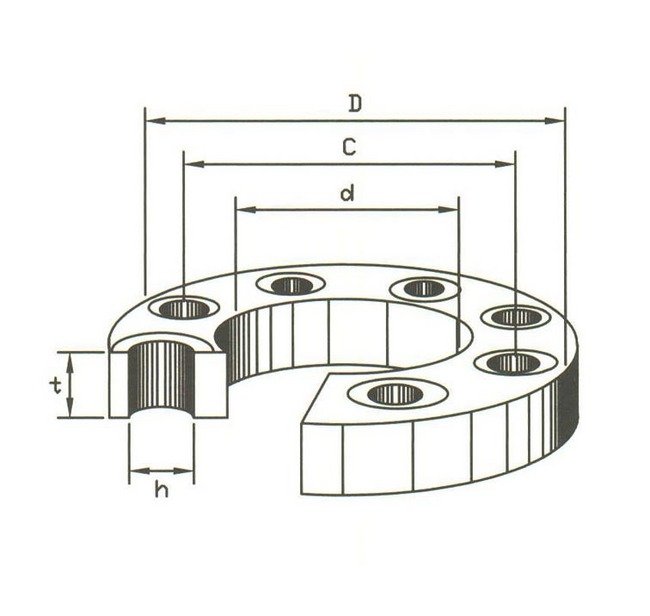

The DIN PN40 Steel Slip-On Flange in size 250mm is a robust and durable carbon steel flange designed for high-pressure applications up to PN 40. With precise dimensions of d: 273mm, D: 450mm, and C: 385mm, this flange ensures secure joint connections. Featuring 12 bolts for enhanced stability, this flange weighs 21.90 kg and has a compact design with dimensions h: 33mm and t: 42mm. Compliant with stringent standards, including IMPA/ISSA Code: 735585, this flange is ideal for critical industrial and institutional projects.

Product Specifications

Specifications C

385 mm

Specifications D

450 mm

Specifications H

33 mm

Specifications Impaissa Code

735585

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

250 - 10"

Specifications T

42 mm

Specifications Weight

21.90 kg
