DIN PN40 Steel Slip-On Flange, 350 - 14"

Name: DIN PN40 Steel Slip-On Flange, 350 - 14"
Brand: World Wide Metric, Inc.
SKU: FLA-941bcc
Price: 99.99 USD
Availability: OutOfStock

SKU:FLA-941bcc

High-quality DIN PN40 Steel Slip-On Flange for industrial use, PN 40 pressure rating, carbon steel construction, 16 bolts, weighs 36.20 kg.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

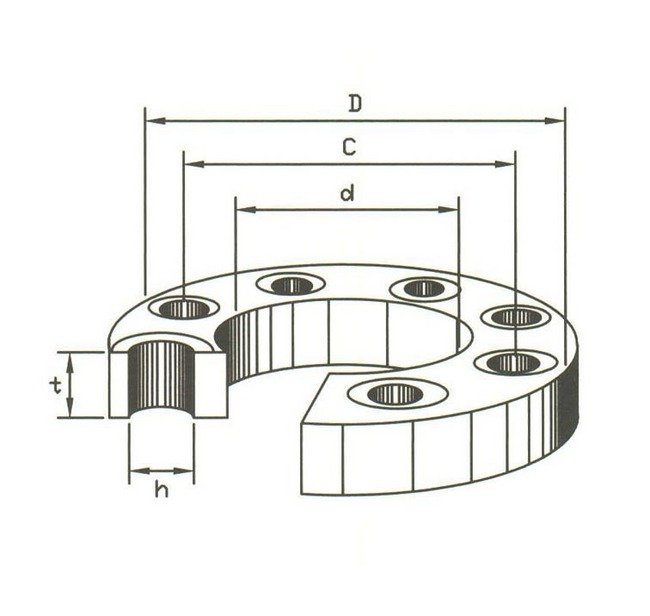

The DIN PN40 Steel Slip-On Flange is a robust carbon steel component designed for industrial applications. With precise measurements of d=359.7 mm, D=580 mm, and C=510 mm, this flange ensures a secure connection with 16 bolts for maximum pressure resistance at PN 40. Weighing 36.20 kg, this flange is durable and reliable, meeting strict procurement standards for institutions and government entities.

Product Specifications

Specifications C

510 mm

Specifications D

580 mm

Specifications H

36 mm

Specifications Impaissa Code

735587

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

350 - 14"

Specifications T

38 mm

Specifications Weight

36.20 kg

DIN PN40 Steel Slip-On Flange, 350 - 14"
