DIN PN6 Mono Flanged Butterfly Valve Series 56
DIN PN6 Mono Flanged Butterfly Valve Series 56
SKU:VAL-4f9bdb
Premium DIN PN6 Mono Flanged Butterfly Valve Series 56 - Sizes: 2" - 32", Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Bronze, Stem: Stainless Steel, Seats: NBR, EPDM, Viton, Teflon
Regular price
$325.00
Regular price
Sale price
$325.00
Unit price
per
Initiate Order
DIN PN6 Mono Flanged Butterfly Valve Series 56
$325.00
Quantity: 1
Claim Your Seller Account
DIN PN6 Mono Flanged Butterfly Valve Series 56
$325.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN6 Mono Flanged Butterfly Valve Series 56 is designed for superior performance in industrial applications. With size options ranging from 2" to 32" and materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve offers exceptional durability and corrosion resistance. Its Stem and Flange meet ISO standards, ensuring seamless integration. The valve is suitable for various pressure requirements up to PN 6 and offers multiple seat and packing material options for enhanced flexibility and compatibility.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

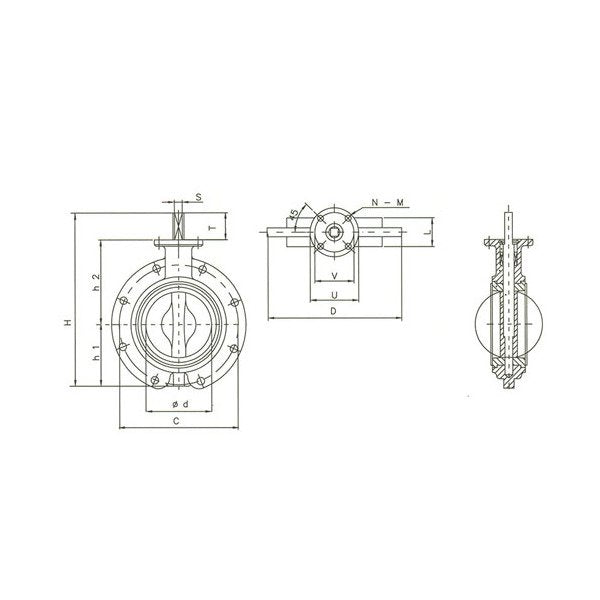

Specifications Bolt Diameter
18 mm
Specifications C
280 mm
Specifications D
320 mm
Specifications D 1
340 mm
Specifications H
396 mm
Specifications H1
158 mm
Specifications H2
204 mm
Specifications L
89 mm
Specifications Number Of Bolts
8
Specifications Pressure
PN 6
Specifications Size
200 - 8"
Specifications Standard
DIN
Specifications Stem S
16 mm
Specifications Stem T
34 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
18.0 kg
