DIN PN6 Series 56 Mono Flanged Valves
DIN PN6 Series 56 Mono Flanged Valves
SKU:VAL-dfcaae
Premium DIN PN6 Series 56 Mono Flanged Valves with ISO compliance for industrial and institutional applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DIN PN6 Series 56 Mono Flanged Valves
$599.99
Quantity: 1
Claim Your Seller Account
DIN PN6 Series 56 Mono Flanged Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN6 Series 56 Mono Flanged Valves offer a comprehensive set of features suitable for a wide range of applications. Designed with precision and compliance in mind, these valves come in sizes ranging from 50A to 800A, constructed from durable materials such as Cast Iron, Carbon Steel, Stainless Steel, Bronze, and equipped with Ductile Iron, Stainless Steel, or Aluminum Bronze components. The stem and seat materials include EPDM, NBR, Teflon, and Viton, ensuring reliable performance and longevity. With a Pressure Rating of PN 6 and meeting ISO standards, these valves are a dependable choice for industrial and institutional use.
Ready to Grow Without Cash Flow Constraints?

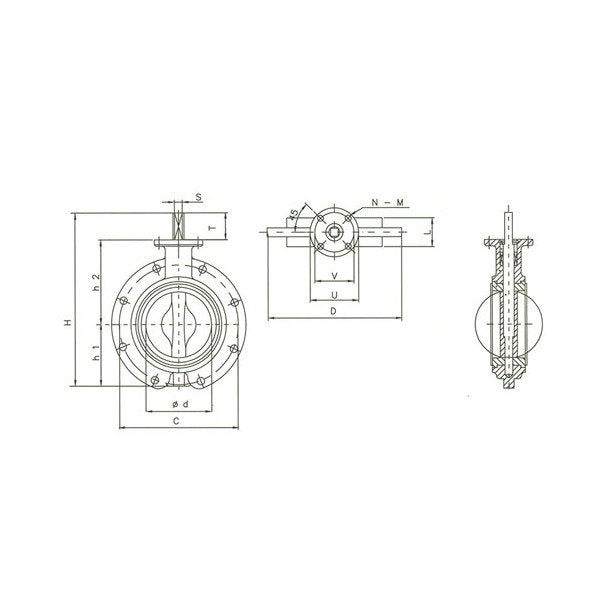

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
18 mm
Specifications C
335 mm
Specifications D
375 mm
Specifications D 1
405 mm
Specifications H
484 mm
Specifications H1
194 mm
Specifications H2
245 mm
Specifications L
114 mm
Specifications Number Of Bolts
12
Specifications Pressure
PN 6
Specifications Size
250 - 10"
Specifications Standard
DIN
Specifications Stem S
24 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
11 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
28.0 kg
