DIN PN6 Series 56 Mono Flanged Valves
DIN PN6 Series 56 Mono Flanged Valves
SKU:VAL-ab4e4c
Premium DIN PN6 Series 56 Mono Flanged Valves for industrial use, featuring a wide size range and durable materials.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN6 Series 56 Mono Flanged Valves
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN6 Series 56 Mono Flanged Valves
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN6 Series 56 Mono Flanged Valves offer exceptional reliability and durability, featuring a size range of 50A to 800A, with body materials available in bronze, carbon steel, cast iron, ductile iron, and stainless steel. The disc options include aluminum bronze, ductile iron, and stainless steel for enhanced performance. These valves meet ISO 5752 S16 and DIN standards, ensuring seamless integration into various systems. With seat materials like EPDM, NBR, Teflon, and Viton, these valves provide excellent sealing capabilities, making them ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?

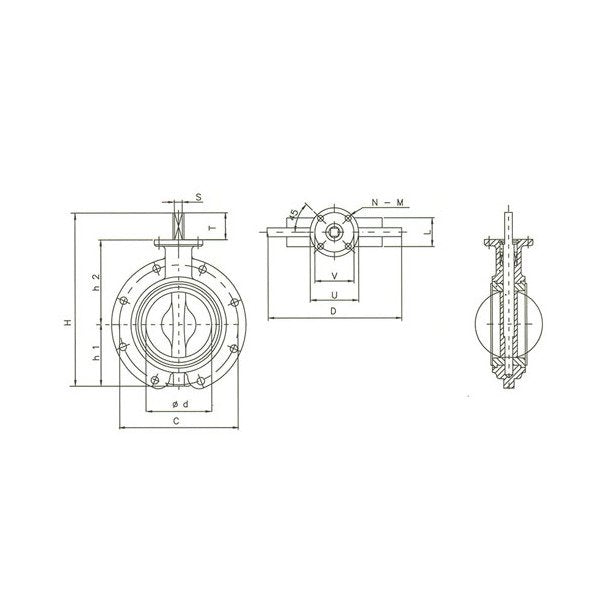

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
22 mm
Specifications C
395 mm
Specifications D
440 mm
Specifications D 1
460 mm
Specifications H
534 mm
Specifications H1
219 mm
Specifications H2
270 mm
Specifications L
114 mm
Specifications Number Of Bolts
12
Specifications Pressure
PN 6
Specifications Size
300 - 12"
Specifications Standard
DIN
Specifications Stem S
24 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
11 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
38.0 kg
