DIN Spec PN 40 Cast Steel Quick Closing Angle Valve

Name: DIN Spec PN 40 Cast Steel Quick Closing Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-946ad5
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-946ad5

Durable DIN Spec PN 40 Cast Steel Valve for high-pressure systems. Stainless steel components, lever actuator, and DIN2501-PN40 flanges.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Spec PN 40 Cast Steel Quick Closing Angle Valve is designed for reliable and efficient shut-off operations in high-pressure systems. Constructed with a robust cast steel body and stainless steel components, this valve ensures durability and corrosion resistance. With a working pressure of 40 bar and spring-loaded shut-off pressure of 2.0 bar, it meets the stringent requirements of industrial applications. The valve features a lever actuator for easy operation and comes with flanges according to DIN2501-PN40 standards, ensuring seamless integration into existing systems.

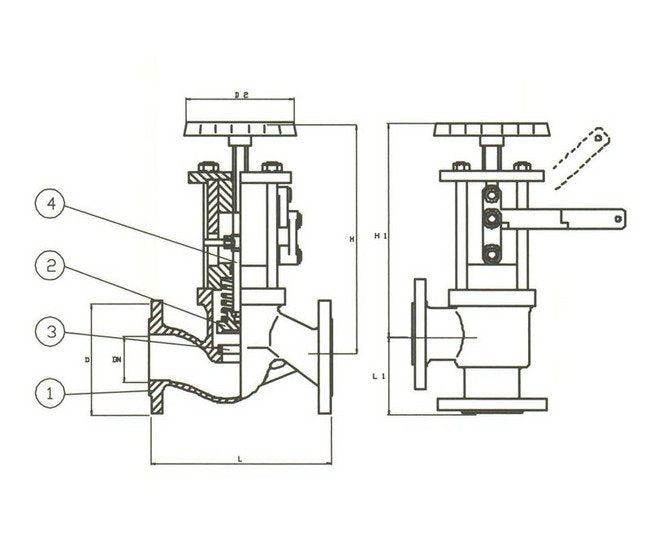

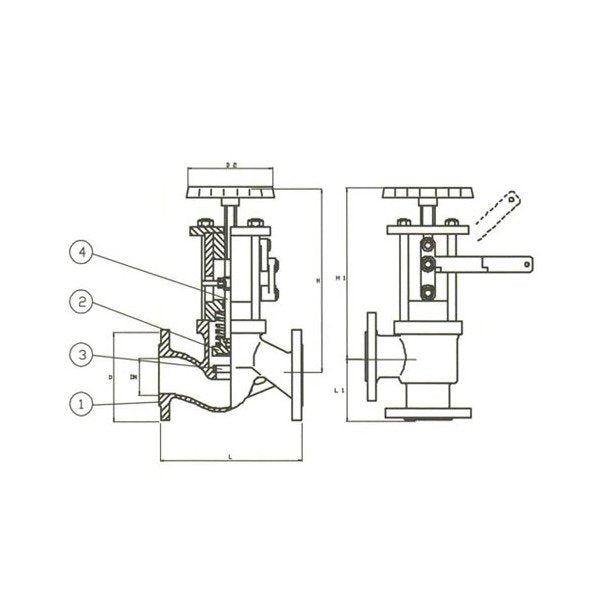

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

140 mm

Specifications Disc Material

Stainless Steel

Specifications H1

400 mm

Specifications L1

145 mm

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

30.00 kg

Specifications Working Pressure

40 bar

DIN Spec PN 40 Cast Steel Quick Closing Angle Valve
