DIN Specialty Bronze Reducing Valve for Air, Gas, Water

Name: DIN Specialty Bronze Reducing Valve for Air, Gas, Water
Brand: World Wide Metric, Inc.
SKU: VAL-7d3335
Price: 449.99 USD
Availability: OutOfStock

SKU:VAL-7d3335

Premium Bronze Reducing Valve for Air, Gas, & Water - Reliable, Precise, Durable

$449.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve for Air, Gas, or Water is a high-quality precision-engineered valve suitable for industrial applications. Crafted with durable bronze body, synthetic disc and seat materials, and brass stem, this valve ensures reliable performance under pressures up to 16 bar. The spring actuators allow for precise pressure reduction between 1.5 - 6 bar. With dimensions meeting DIN standards, this valve provides efficient flow control with a weight of 91.5 kg. Trust in this valve for dependable operation and longevity in your systems.

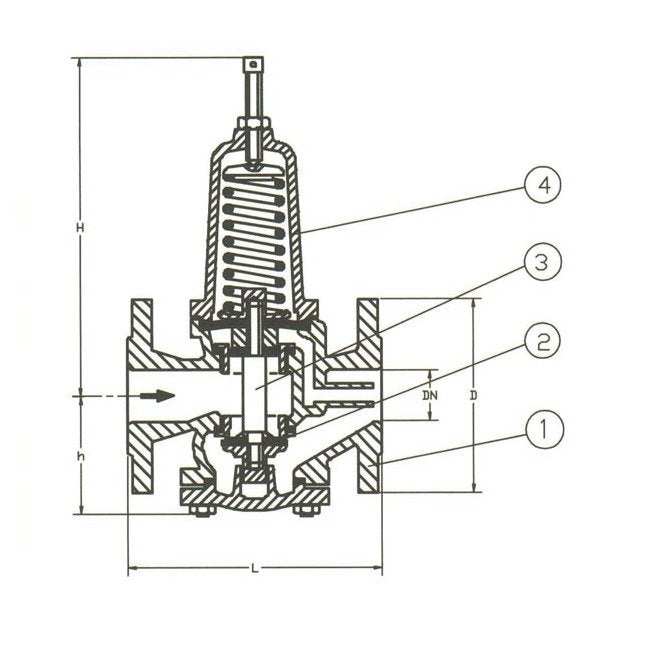

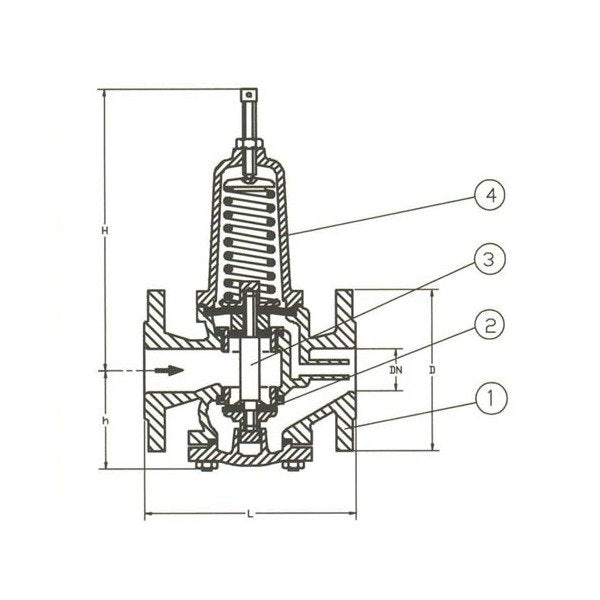

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

160 mm

Specifications D

200 mm

Specifications Disc Material

Synthetic Material

Specifications H

400 mm

Specifications Hole Diameter

18 mm

Specifications L

310 mm

Specifications Max Inlet Pressure

16 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 6 bar

Specifications Seat Material

Synthetic Material

Specifications Size

080

Specifications Stem Material

Brass

Specifications Weight

91.5 kg

DIN Specialty Bronze Reducing Valve for Air, Gas, Water
