DIN Specialty Cast Steel Quick Closing Angle Valve PN40

Name: DIN Specialty Cast Steel Quick Closing Angle Valve PN40
Brand: World Wide Metric, Inc.
SKU: VAL-e1a783
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-e1a783

High-pressure DIN Specialty Valve with Spring Loaded Shut-off and Lever Actuator for precise industrial control.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Specialty Cast Steel Quick Closing Angle Valve PN40 is designed for high-pressure applications, featuring a Cast Steel body, Stainless Steel disc, seat, and stem, meeting rigorous DIN2501-PN40 flange standards. With a compact size of 040, this valve offers a Spring Loaded Shut-off Pressure of 2.0 bar and a robust Working Pressure of 40 bar. The Spring-loaded design ensures quick and reliable shut-off, while the lever actuator allows for easy operation. Ideal for industrial use requiring precision and durability.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

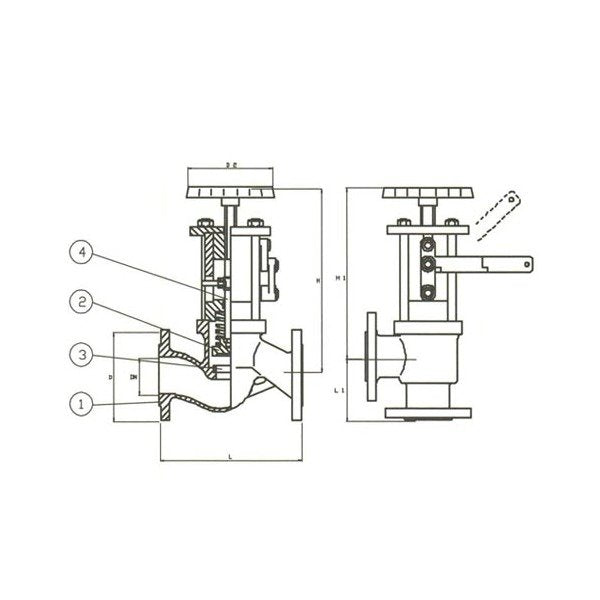

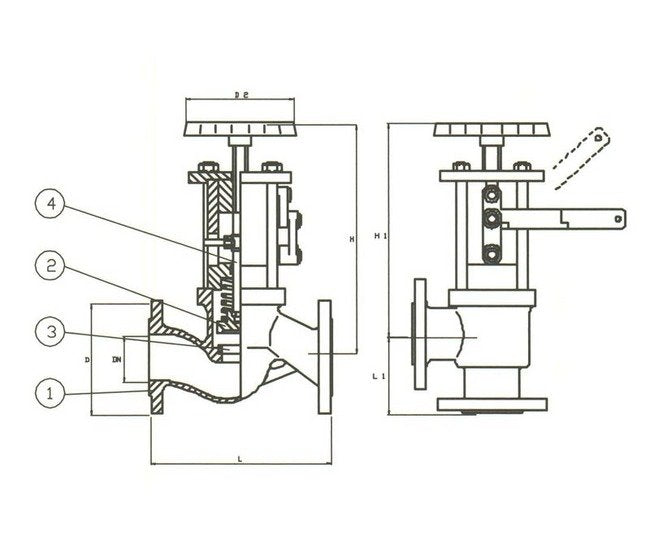

Specifications D

150 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H1

355 mm

Specifications L1

115 mm

Specifications Seat Material

Stainless Steel

Specifications Size

040

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

14.0 kg

Specifications Working Pressure

40 bar

DIN Specialty Cast Steel Quick Closing Angle Valve PN40
