DIN Specialty Cast Steel Spring-loaded Angle Valve - PN16
DIN Specialty Cast Steel Spring-loaded Angle Valve - PN16
SKU:VAL-1206d1
Durable Cast Steel Spring-loaded Angle Valve with precise control and DIN2501-PN16 flanged connections for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Specialty Cast Steel Spring-loaded Angle Valve - PN16
$299.99
Quantity: 1
Claim Your Seller Account
DIN Specialty Cast Steel Spring-loaded Angle Valve - PN16
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Specialty Cast Steel Spring-loaded Angle Valve - PN16 is a robust and reliable solution for fluid control applications. Constructed with high-quality materials such as Cast Steel body, Stainless Steel disc, and stem, this valve ensures durability and corrosion resistance. The Spring-loaded design offers precise pressure regulation, while the flanged connection provides easy installation according to DIN2501-PN16 standards. With a size of 100 and compliant with hydraulic inspections, this valve guarantees performance and longevity in various industrial settings.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

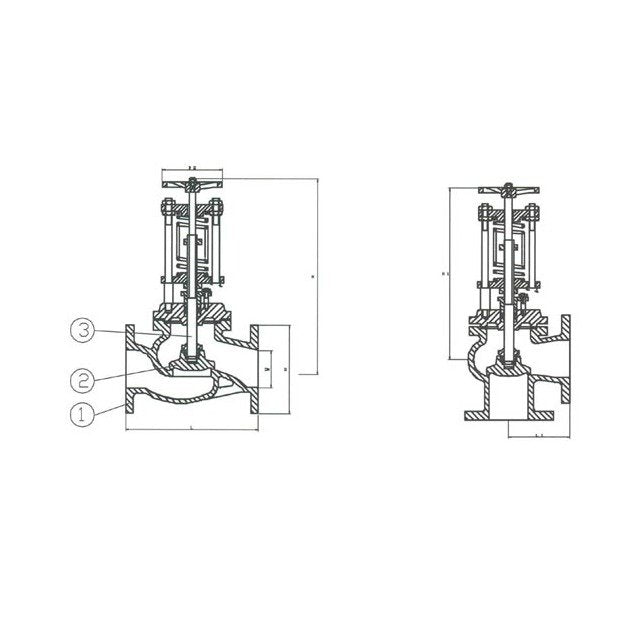

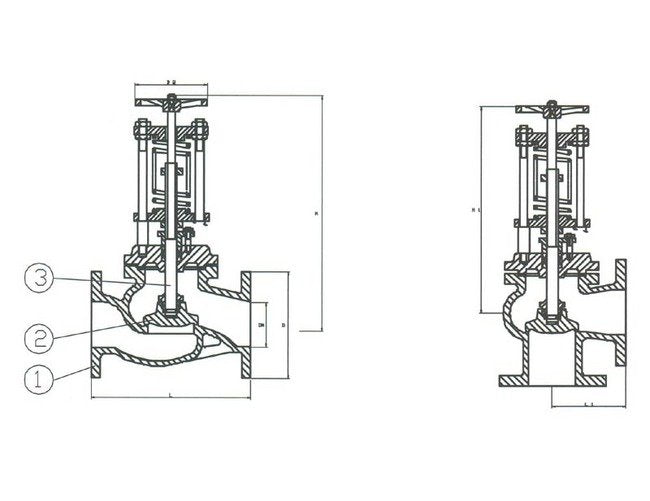

Specifications D
220 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H1
485 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
175 mm
Specifications Seat Material
Brass
Specifications Size
100
Specifications Stem Material
Brass
Specifications Weight
45.0 kg
