DIN Specialty Cast Steel Spring Loaded Angle Valve, Size 125 PN16
DIN Specialty Cast Steel Spring Loaded Angle Valve, Size 125 PN16
SKU:VAL-7340b9
Precision-crafted cast steel angle valve for marine & industrial use. DIN2501-PN16 compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DIN Specialty Cast Steel Spring Loaded Angle Valve, Size 125 PN16
$249.99
Quantity: 1
Claim Your Seller Account
DIN Specialty Cast Steel Spring Loaded Angle Valve, Size 125 PN16
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Overboard Spring loaded, Angle Valve is crafted with precision using GSC-25N2 Cast Steel body, Stainless Steel Disc, and INOX Stem. Meeting DIN2501-PN16 standards, this valve ensures reliable performance in hydraulic systems. The valve's robust build, brass seat, and Stainless Steel disc guarantee longevity and efficient flow control. Ideal for marine applications and industrial settings requiring durable and compliant valves.

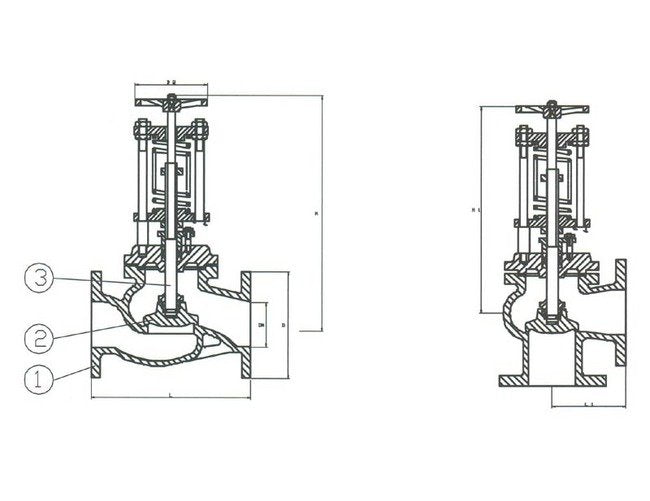

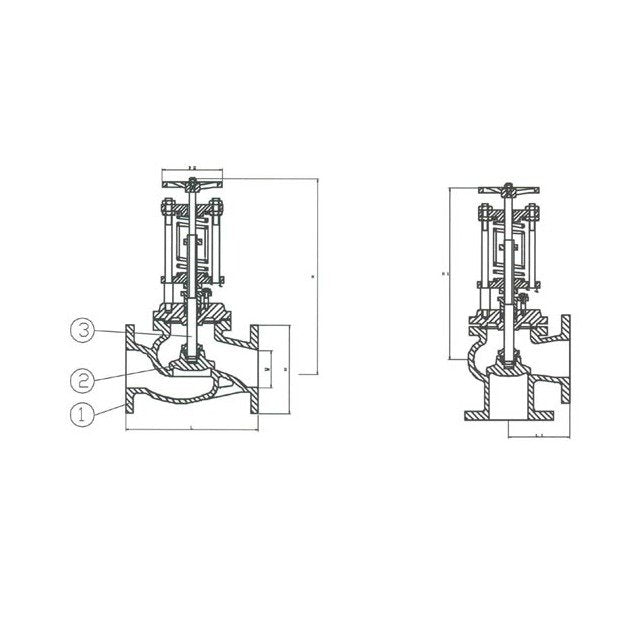

Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H1
530 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
200 mm
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications Weight
70.0 kg
