DIN Specialty Overboard Globe Valve - PN16 Cast Steel Spring Loaded

Name: DIN Specialty Overboard Globe Valve - PN16 Cast Steel Spring Loaded
Brand: World Wide Metric, Inc.
SKU: VAL-9744c8
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-9744c8

Premium PN 16 Cast Steel Overboard Spring loaded Globe Valve for durable and reliable performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Overboard Spring loaded Globe Valve offers high-quality performance for both consumer and institutional buyers. Constructed with a cast steel body, stainless steel disc, and stem, this valve ensures durability and reliability. With flanges according to DIN2501-PN16 standards, it provides secure connections for various applications. The spring actuators guarantee smooth operation, while the brass seat material enhances resistance to corrosion. Suitable for hydraulic applications, this valve is designed to meet stringent industry standards.

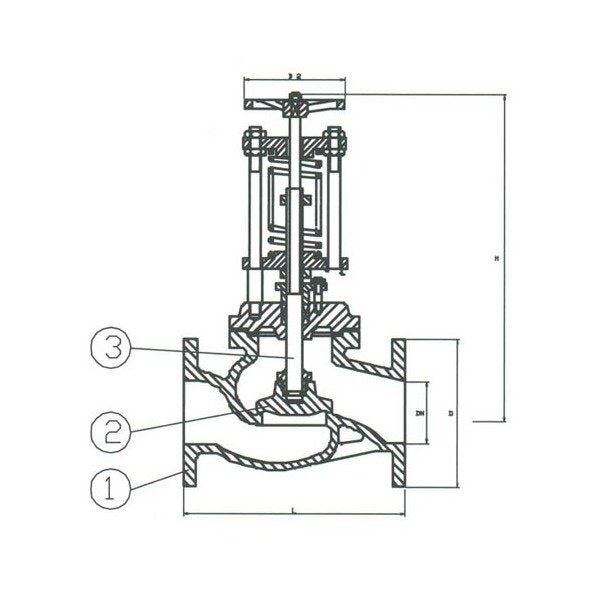

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

355 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

180 mm

Specifications Seat Material

Brass

Specifications Size

032

Specifications Stem Material

Brass

Specifications Weight

8.0 kg
