DIN Stainless Steel Wafer Disc Check Valve
DIN Stainless Steel Wafer Disc Check Valve
SKU:VAL-b39098
Reliable stainless steel wafer disc check valve compliant with DIN standards for secure sealing and efficient flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN Stainless Steel Wafer Disc Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
DIN Stainless Steel Wafer Disc Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Stainless Steel Wafer Disc Check Valve provides reliable backflow prevention with its stainless steel AISI 316L construction. Designed to meet DIN3202 K4 standards, this valve ensures secure sealing and optimal flow control in industrial applications. The valve features a spring actuator for efficient operation and is compactly built for easy installation. Trust in this valve's durability and performance for your critical fluid control needs.

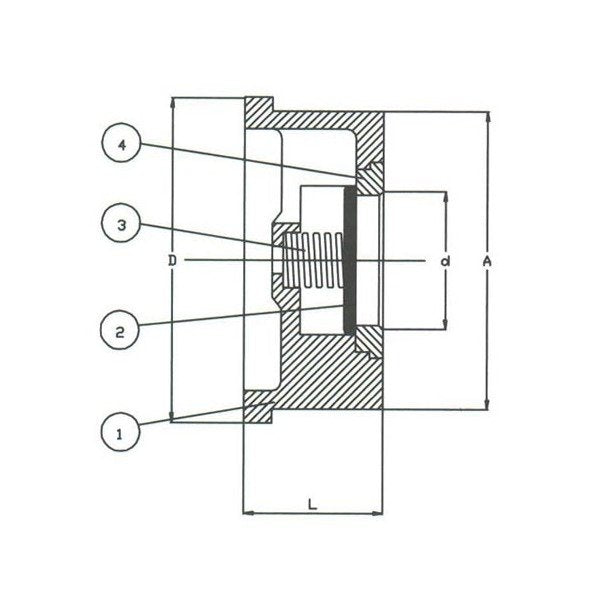

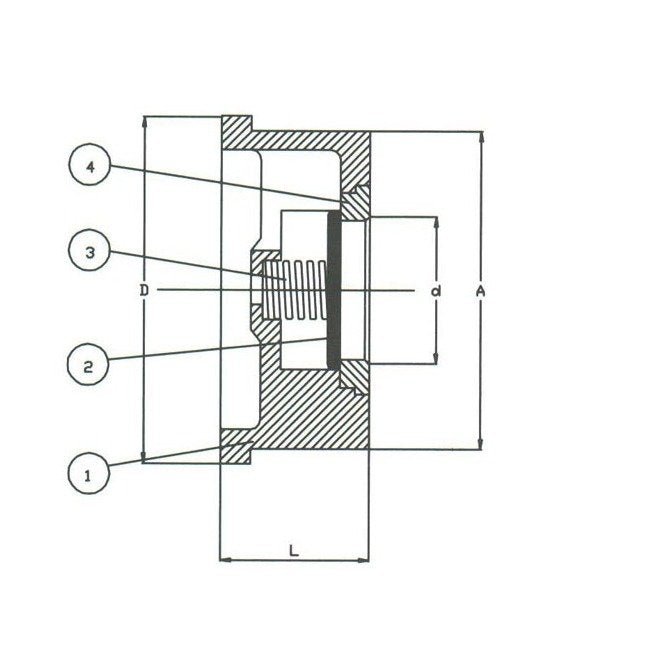

Product Specifications
Specifications A
65 mm
Specifications Actuators
Spring
Specifications Body Material
Stainless Steel
Specifications D
73 mm
Specifications Disc Material
Stainless Steel
Specifications L
22.0 mm
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications Weight
0.26 kg
