DIN Stainless Steel Wafer Disc Check Valve - 20mm
DIN Stainless Steel Wafer Disc Check Valve - 20mm
SKU:VAL-bbf6ea
High-quality 20mm DIN Stainless Steel Wafer Disc Check Valve - Compliant with DIN3202 K4 for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN Stainless Steel Wafer Disc Check Valve - 20mm
$49.99
Quantity: 1
Claim Your Seller Account
DIN Stainless Steel Wafer Disc Check Valve - 20mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Stainless Steel Wafer Disc Check Valve is a reliable solution for fluid control applications. Constructed with high-quality AISI 316 L stainless steel components including the body, disc, spring, and seat, this valve guarantees durability and resistance to corrosion. Compliant with DIN3202 K4 standards, it provides secure face-to-face sealing. Its compact design with a 20mm size makes it ideal for diverse industrial settings, ensuring efficient performance and longevity.

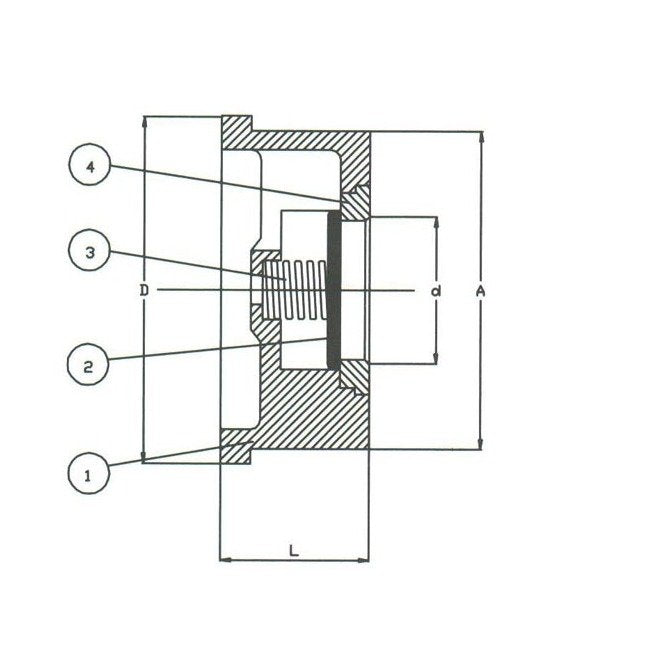

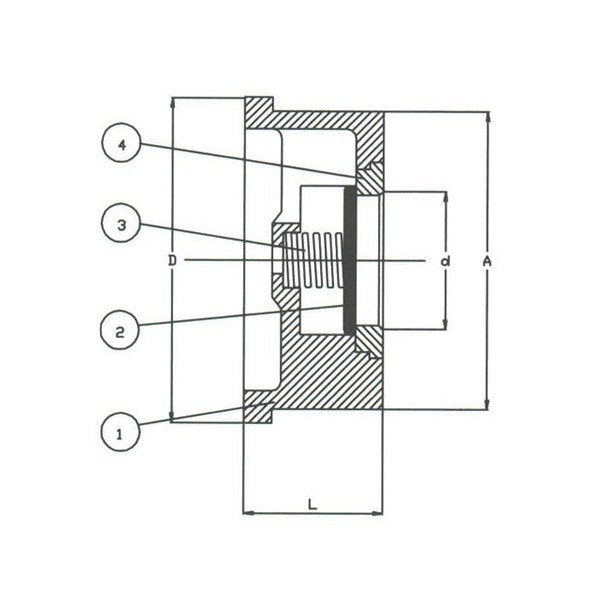

Product Specifications
Specifications A
55.0 mm
Specifications Actuators
Spring
Specifications Body Material
Stainless Steel
Specifications D
63 mm
Specifications Disc Material
Stainless Steel
Specifications L
19 mm
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Stem Material
Stainless Steel
Specifications Weight
0.14 kg
