DIN Storm Angle Pattern Valve - Cast Steel PN 10
DIN Storm Angle Pattern Valve - Cast Steel PN 10
SKU:VAL-504a40
High-quality Cast Steel Storm Angle Valve; DIN standard compliant; Brass seat material; Handwheel actuator
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Storm Angle Pattern Valve - Cast Steel PN 10
$299.99
Quantity: 1
Claim Your Seller Account
DIN Storm Angle Pattern Valve - Cast Steel PN 10
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

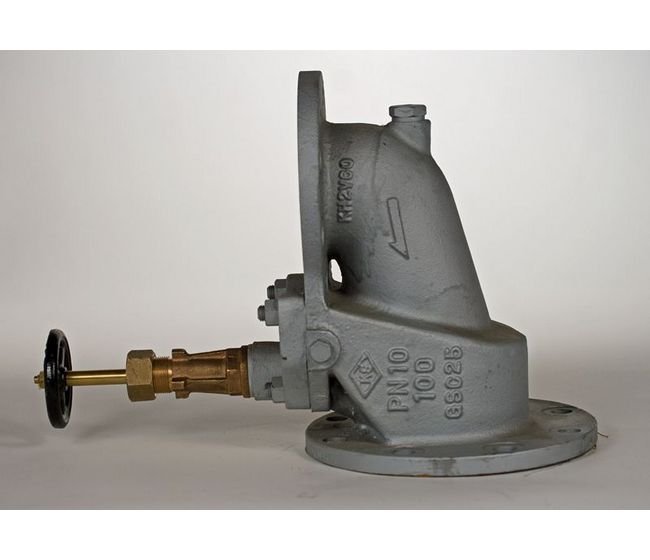

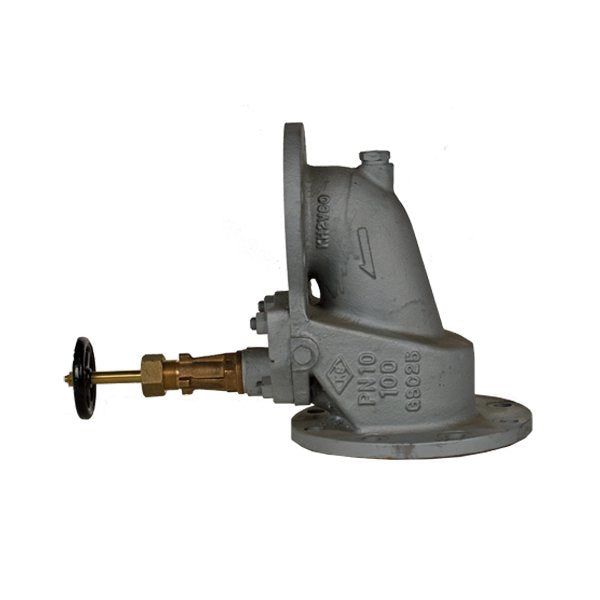

The PN 10 Cast Steel Storm Angle Pattern Valve is a durable solution for fluid control applications. Constructed with GSC-25N2 Cast Steel body, bronze disc, and brass stem, this valve ensures reliable performance. With compliance to DIN standards and brass seat material, it offers longevity and efficiency. The handwheel actuator allows easy operation, making it ideal for industrial settings where precision is key.

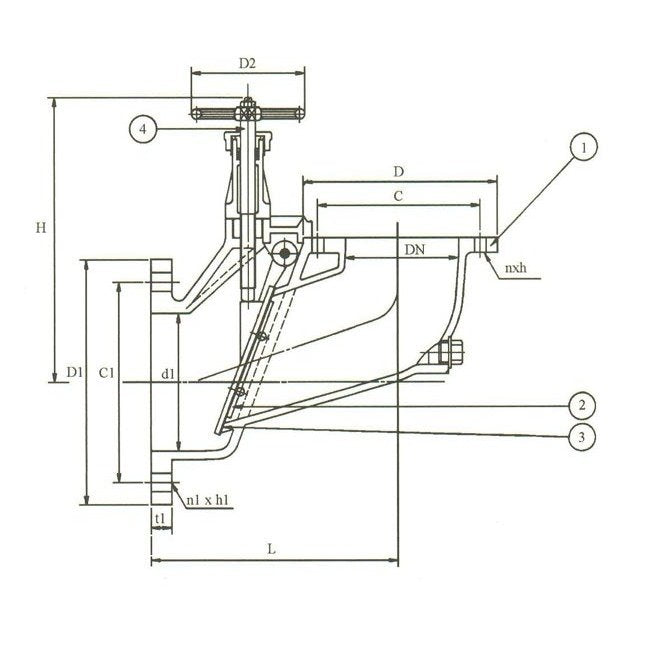

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications C1
160 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D1
200 mm
Specifications D2
100 mm
Specifications Disc Material
Bronze
Specifications H
210 mm
Specifications H1
18 mm
Specifications Hydraulic Inspection Body
5.1
Specifications Hydraulic Inspection Seat
2.0
Specifications Impaissa Code
754285 | 754291
Specifications L
180 mm
Specifications N1 Number Of Holes
8
Specifications N Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
050
Specifications Stem Material
Brass
Specifications T
18 mm
Specifications T1
20 mm
Specifications Weight
11.5 kg
