DIN Storm Vertical Pattern Valve GSC-25N2 PN10

Name: DIN Storm Vertical Pattern Valve GSC-25N2 PN10
Brand: World Wide Metric, Inc.
SKU: VAL-d500c3
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-d500c3

Durable DIN Storm Vertical Pattern Valve for precise fluid control in industrial settings.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Storm Vertical Pattern Valve GSC-25N2 PN10 is a robust solution for fluid control. Constructed with cast steel body, bronze disc, and brass stem, it ensures durability and reliability. Featuring NBR disc gasket and brass seat material, this valve meets stringent DIN standards. The handwheel actuator allows for manual operation, making it versatile for various industrial applications.

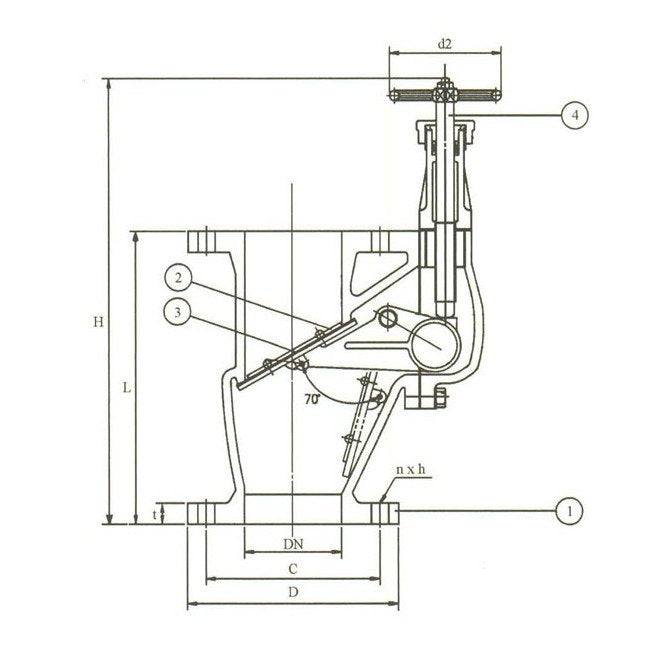

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

720 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications L

500 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

200

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

189 kg
