DIN2501-PN16 Cast Steel Overboard Spring-Loaded Angle Valve
DIN2501-PN16 Cast Steel Overboard Spring-Loaded Angle Valve
SKU:VAL-6839f1
Reliable DIN2501-PN16 Cast Steel Angle Valve for precise fluid control in industrial settings.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DIN2501-PN16 Cast Steel Overboard Spring-Loaded Angle Valve
$599.99
Quantity: 1
Claim Your Seller Account
DIN2501-PN16 Cast Steel Overboard Spring-Loaded Angle Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

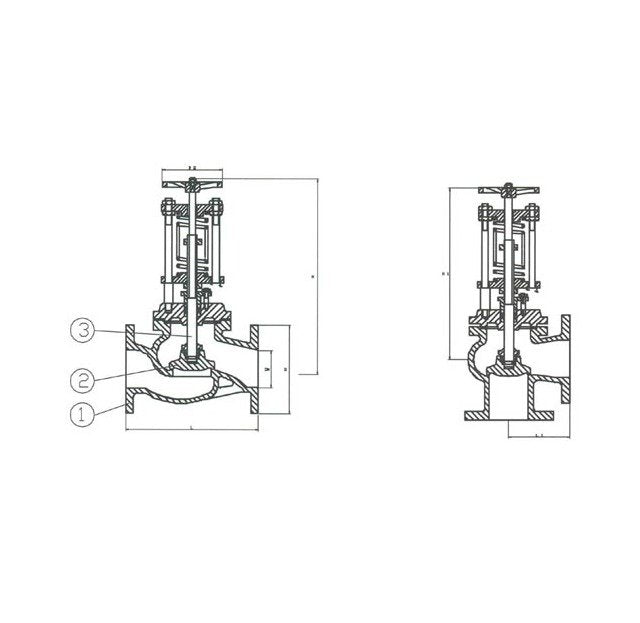

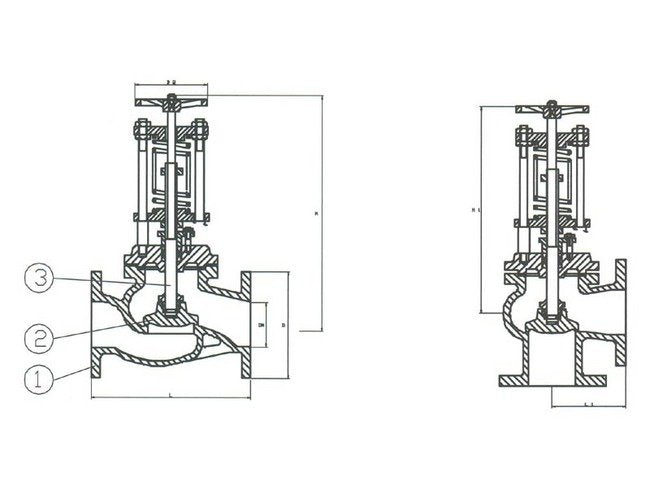

The DIN2501-PN16 Cast Steel Overboard Spring-Loaded Angle Valve is a robust solution for industrial applications, featuring a cast steel body, stainless steel disc, and stem. With a size of 250, hydraulic inspections compliant with standards, and spring actuators, it ensures reliable performance. The flanged connection drilled as per DIN2501-PN16 simplifies installation, offering durability and efficiency for fluid control systems.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
405 mm
Specifications D2
395 mm
Specifications Disc Material
Stainless Steel
Specifications H1
820 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L1
325 mm
Specifications Seat Material
Brass
Specifications Size
250
Specifications Stem Material
Brass
Specifications Weight
310 kg
