Dip Molded Round Vinyl Cap
Dip Molded Round Vinyl Cap
SKU:ROU-cbf1eb
Enhance product appearance and protection with MOCAP's Dip Molded Round Vinyl Caps. Versatile and durable, these caps are perfect for multiple applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Dip Molded Round Vinyl Cap
$12.99
Quantity: 1
Claim Your Seller Account
Dip Molded Round Vinyl Cap
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

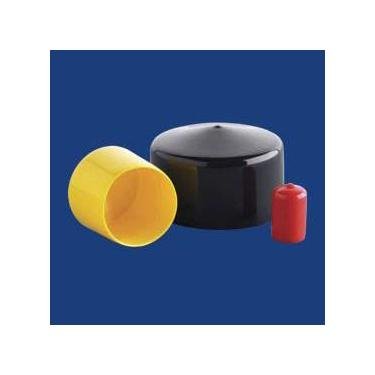

Elevate the protection and aesthetic appeal of your consumer or industrial products with MOCAP's Dip Molded Round Vinyl Caps. These durable plastic caps offer cost-effective yet robust shielding, serving as versatile end caps, pipe caps, or tube caps. Available in various lengths, colors, and durometers, our vinyl plastic caps, manufactured through a meticulous dip molding process, require no additional tooling charges. MOCAP's round vinyl caps can also double as masking caps for painting processes below 300°F and are ideal for assembly or shipping protection.
Product Specifications
Features 0
MOCAP round vinyl plastic caps are available in sizes from 0.062 in to 6.00 in diameter.
Finishing And Appearance 0
MOCAP can dip mold round vinyl plastic caps in virtually any color to compliment your product as a finishing cap visible to end users. Consider MOCAP's other finishing and appearance Products.
Manufacturing Notes 0
Round Plastic Caps are stocked in many sizes, ready for immediate shipment or MOCAP can manufacture vinyl plastic caps to-order with the fastest lead-times in the industry.PMS or special color matching available if our standard color options do not meet your needs.Stocked Parts are in General Purpose 9500-002 Black Material, with some available in our General Purpose 9500-011 Red Material. See the size chart above for stock offerings.Box Quantities may vary on items which are available in multiple lengths. Use MOCAP vinyl plastic caps as durable and inexpensive caps to protect your product threads or surfaces during assembly or shipping. Review all of MOCAP's products.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic caps are often used as inexpensive and disposable single-use masking caps for painting and coating processes under 300 °F. For high temperature masking greater than 300 °F, consider MOCAP's High Temperature Vinyl or EPDM Masking Products good to 475 °F, or MOCAP Silicone Masking Products good to over 600 °F.

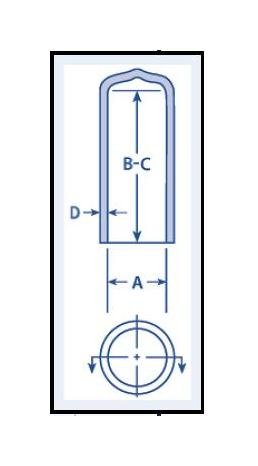

Specifications Inside Diameter Dimension A
0.320 in | 8.1 mm
Specifications Manufacturing Process
Dip Molded
Specifications Maximum Inside Length Dimension C
1.000 in | 25.4 mm
Specifications Minimum Inside Length Dimension B
0.188 in | 4.8 mm
Specifications Wall Thickness Dimension D
0.038 in | 1.0 mm
