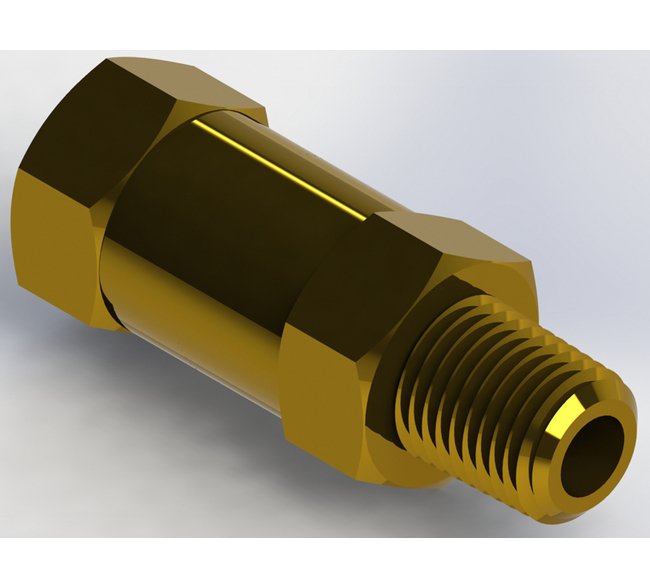

Disk Check Valve - Brass, 1/4" NPT, GOC Type
Disk Check Valve - Brass, 1/4" NPT, GOC Type
SKU:CHE-410976
High-performance Disk Check Valve - Brass, 1/4" NPT, GOC Type. Ideal for precise flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Check Valve - Brass, 1/4" NPT, GOC Type
$29.99
Quantity: 1
Claim Your Seller Account
Disk Check Valve - Brass, 1/4" NPT, GOC Type
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

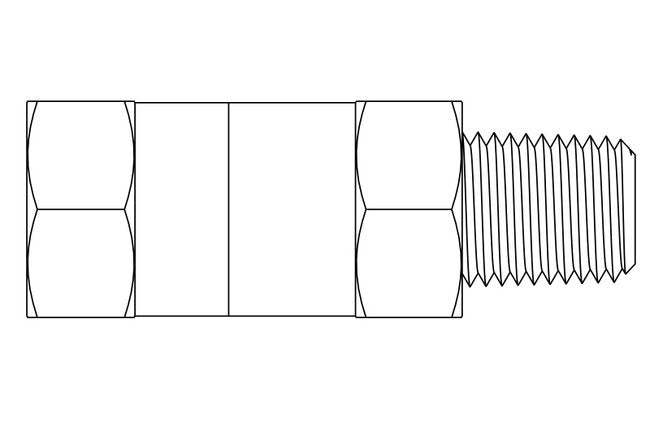

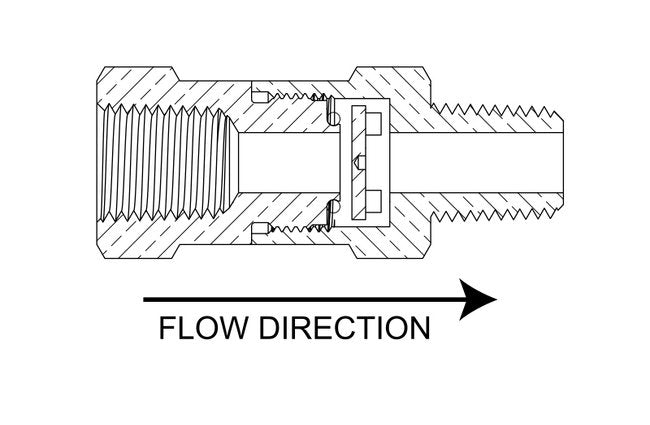

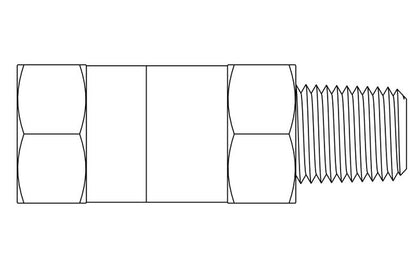

The Disk Check Valve is a reliable solution for controlling the flow of liquids or gases. Crafted from durable brass with a Viton seal, this valve ensures secure one-directional flow, preventing reverse flow. With a high flow capacity, low pressure loss, and a low cracking pressure of 0.25 psig, it delivers optimal performance. Operating at a maximum temperature of 225°F and pressure of 150 psig, this valve offers long-lasting operation. Its compact design features a 3/4" width across flats (Hex) and a total length of 2.11", making it suitable for a wide range of applications.
Product Specifications
Dimensions Total Length
2.11 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
Brass
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
