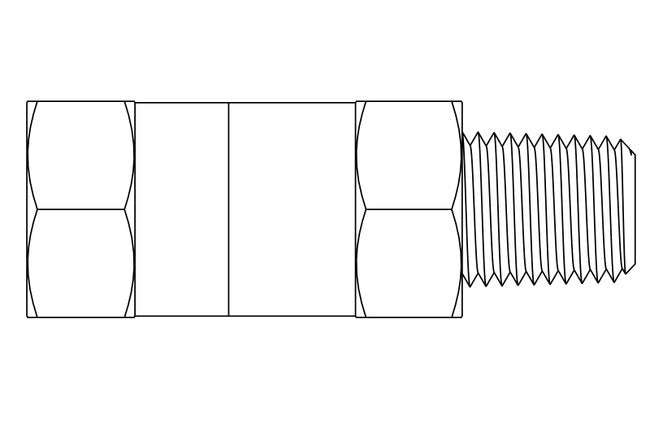

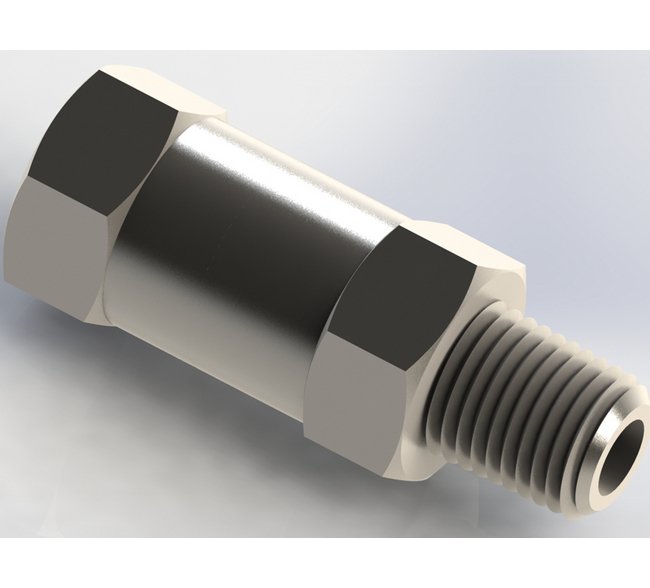

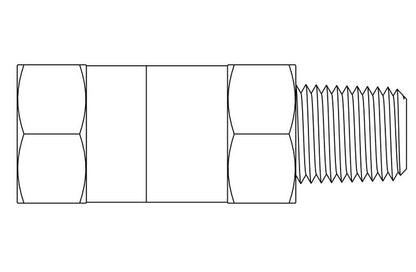

Disk Check Valves with 1/8" NPT Adapter, Type DOC - 303 SS
Disk Check Valves with 1/8" NPT Adapter, Type DOC - 303 SS
SKU:CHE-423320
High-performance Disk Check Valves with 1/8" NPT Adapter for liquids or gases, featuring 303 SS build and Viton seals.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Disk Check Valves with 1/8" NPT Adapter, Type DOC - 303 SS
$34.99
Quantity: 1
Claim Your Seller Account
Disk Check Valves with 1/8" NPT Adapter, Type DOC - 303 SS
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

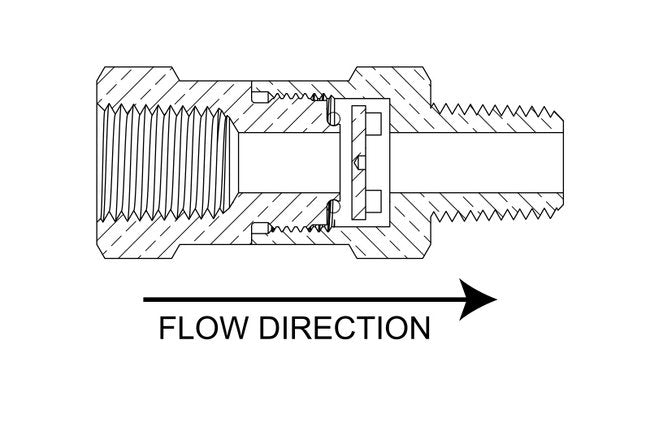

The Disk Type Check Valves with 1/8" NPT Adapter, Type DOC, crafted from 303 SS, boast a high flow capacity, low pressure loss, and a low cracking pressure of 0.25 psig. With a CV of 0.43 and suitable for liquids or gases, these valves offer reliable performance with a maximum operating pressure of 150 psig. Featuring Viton seals for secure operation, these valves ensure free flow in one direction while preventing reverse flow. With a maximum temperature of 225°F, these valves prioritize long-life operation and minimal seat leakage.
Product Specifications
Dimensions Total Length
1.72 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.43
Specifications Disk Material
303 SS
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
