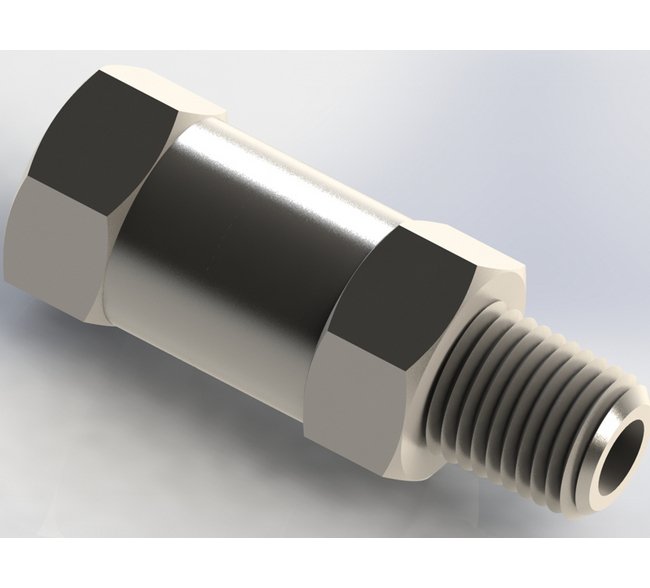

Disk Type Check Valves, 1/4" NPT Adapter, Type GOC - Stainless Steel
Disk Type Check Valves, 1/4" NPT Adapter, Type GOC - Stainless Steel
SKU:CHE-db8509
Enhance fluid control with our stainless steel Disk Type Check Valves for reliable one-direction flow. Meets federal procurement standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Disk Type Check Valves, 1/4" NPT Adapter, Type GOC - Stainless Steel
$39.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves, 1/4" NPT Adapter, Type GOC - Stainless Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with our Disk Type Check Valves featuring a durable 303 SS body and disk, Viton seals, and a low cracking pressure of 0.25 psig. With a high flow capacity, low pressure loss, and resistance to seat leakage, these valves ensure reliable performance in liquids or gases. Meets federal procurement standards and FAR compliance.
Product Specifications
Dimensions Total Length
2.11 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
303 SS
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
