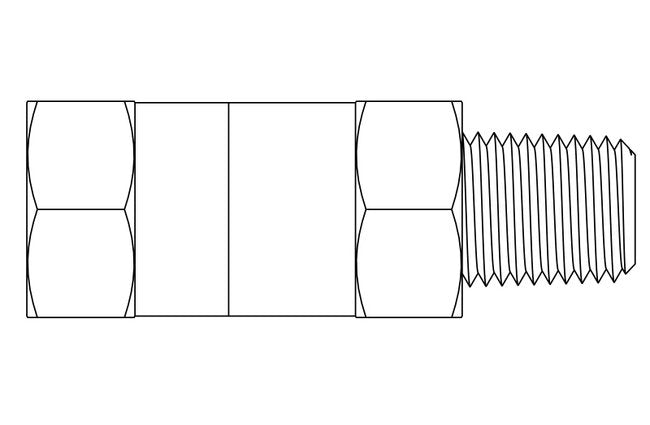

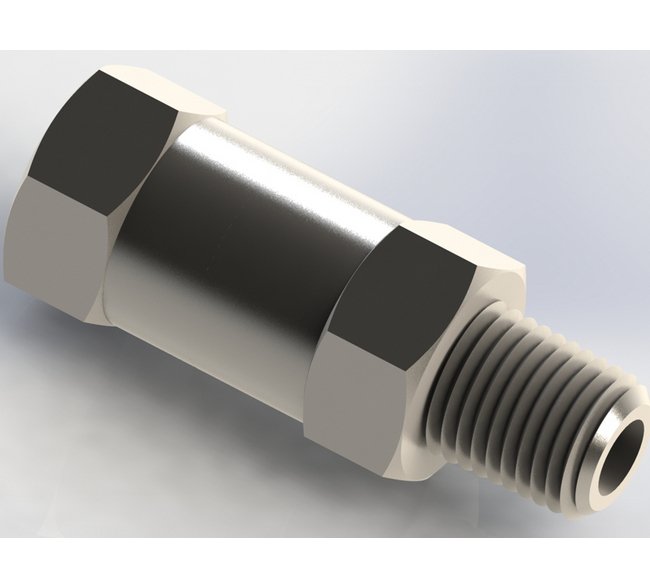

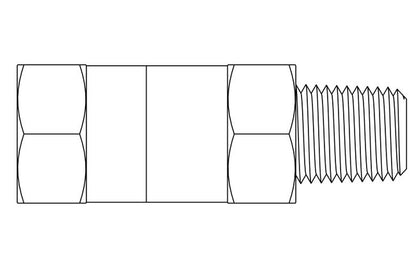

Disk Type Check Valves - 1/4" NPT Connection, Brass/Stainless Steel, Type GOC
Disk Type Check Valves - 1/4" NPT Connection, Brass/Stainless Steel, Type GOC
SKU:CHE-3ae72d
High-quality Disk Type Check Valves for liquids or gases with 1/4" NPT Connection. Ensures reliable one-way flow with low cracking pressure and high durability.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Disk Type Check Valves - 1/4" NPT Connection, Brass/Stainless Steel, Type GOC
$45.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - 1/4" NPT Connection, Brass/Stainless Steel, Type GOC
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

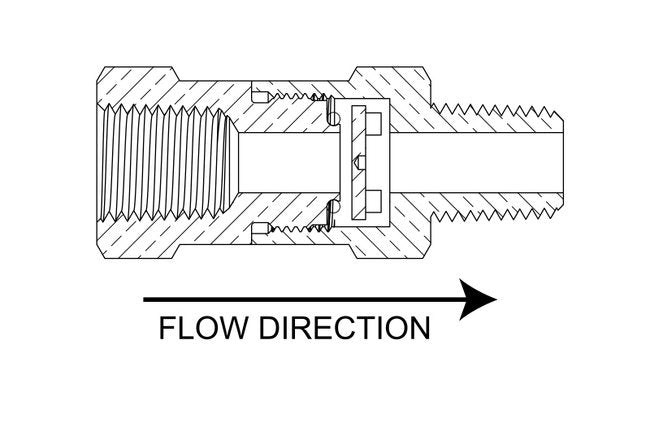

Our Disk Type Check Valves with 1/4" NPT Connection, available in brass or stainless steel, are designed for use with liquids or gases. Featuring a high flow capacity, low pressure loss, and a low cracking pressure of 0.25 psig, these check valves ensure reliable one-way flow. With a maximum operating pressure of 150 psig and Viton seal material, they offer long-lasting performance, making them ideal for industrial applications.
Product Specifications
Dimensions Total Length
2.11 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
