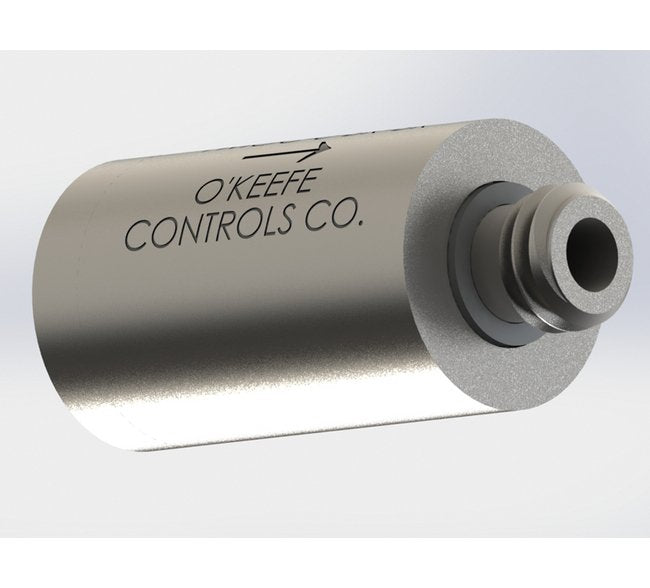

Disk Type Check Valves - 10-32 UNF Connection (303 SS)
Disk Type Check Valves - 10-32 UNF Connection (303 SS)
SKU:CHE-dd94b4
High-quality Disk Type Check Valves for precise flow control. Ideal for liquids or gases.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Disk Type Check Valves - 10-32 UNF Connection (303 SS)
$45.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - 10-32 UNF Connection (303 SS)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Disk Type Check Valves, made of high-quality 303 SS, ensure reliable and efficient flow control for liquids or gases. With a low cracking pressure of 0.5 psig, maximum temperature of 225 °F, and a high flow capacity, these valves offer long-lasting performance and minimal pressure loss. Suitable for both consumer and institutional use, they prevent reverse flow effectively, meeting stringent procurement standards.
Product Specifications
Dimensions Outside Diameter
3/8 in
Dimensions Total Length
0.815 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Connection A
10-32 UNF Female
Specifications Connection B
10-32 UNF Male
Specifications Cracking Pressure
0.5 psig
Specifications Cv
0.150
Specifications Disk Material
303 SS
Specifications Material
303 SS
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Silicone
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
