Disk Type Check Valves - Brass and Stainless Steel, NPT Female Connection
Disk Type Check Valves - Brass and Stainless Steel, NPT Female Connection
SKU:CHE-ff09ac
High-quality Disk Type Check Valves with brass and stainless steel construction for efficient flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Type Check Valves - Brass and Stainless Steel, NPT Female Connection
$29.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - Brass and Stainless Steel, NPT Female Connection
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

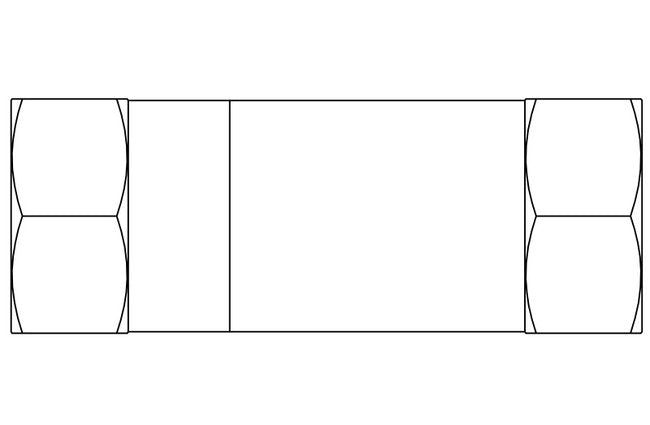

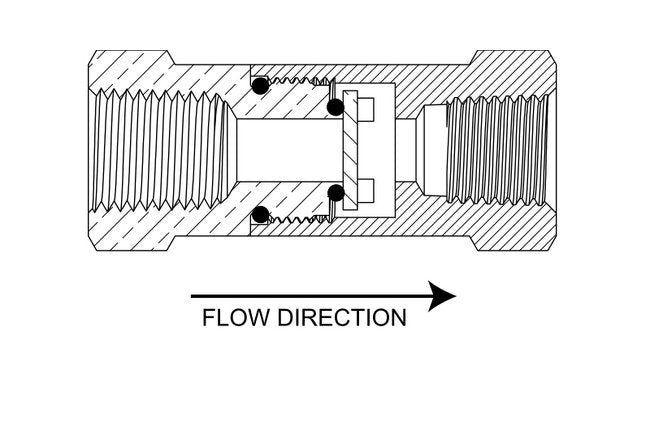

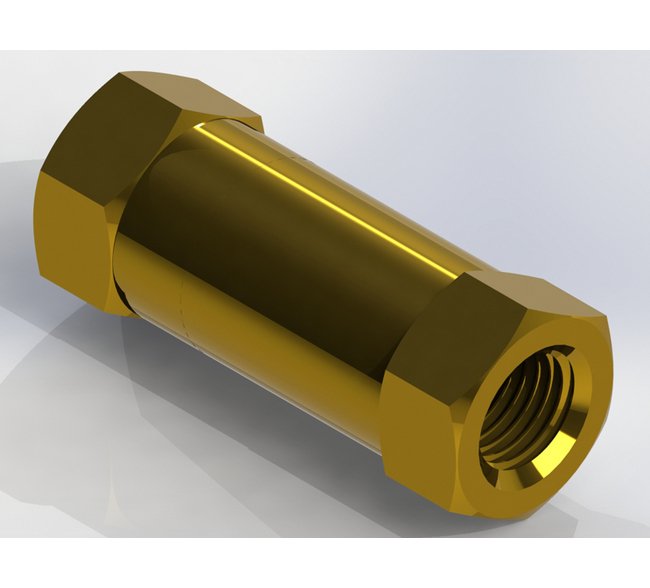

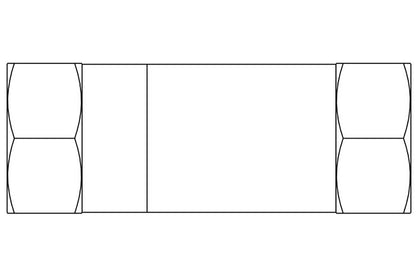

Our Disk Type Check Valves, constructed from brass and stainless steel, feature Delrin disk material and Viton seals. With a CV of 0.61 and a cracking pressure of 0.25 psig, these valves offer high flow capacity, low pressure loss, and long life operation. Ideal for use with liquids or gases, these valves prevent reverse flow effectively. Measuring 3/4" in width across flats and 2.02" in total length, they ensure reliability at temperatures up to 120°F and pressures up to 150 psig.
Product Specifications
Dimensions Total Length
2.02 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
