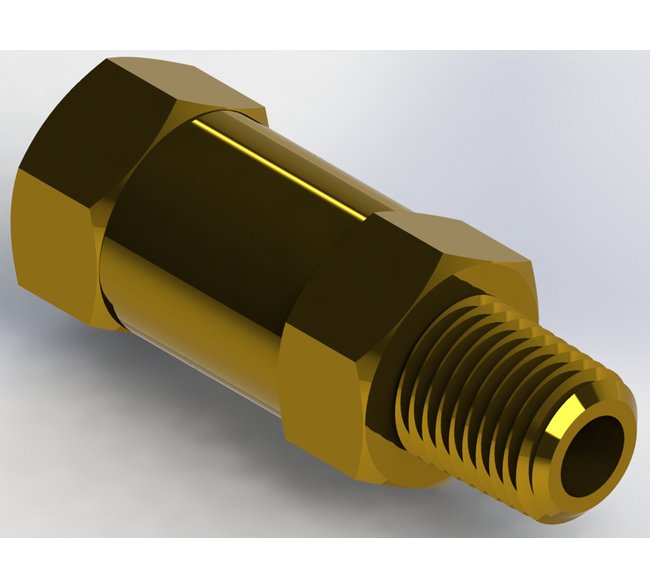

Disk Type Check Valves - Brass/Stainless Steel, 1/8" NPT Connections
Disk Type Check Valves - Brass/Stainless Steel, 1/8" NPT Connections
SKU:CHE-2e24c9
High-performance Disk Type Check Valves for precise fluid/gas control. Brass/Delrin construction, low pressure loss, and long operational life.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Type Check Valves - Brass/Stainless Steel, 1/8" NPT Connections
$29.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - Brass/Stainless Steel, 1/8" NPT Connections
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

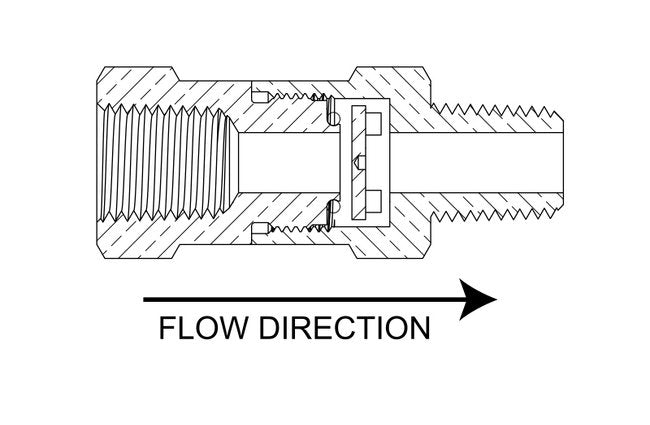

Enhance fluid/gas flow control with our Disk Type Check Valves. Crafted from Brass/Delrin with Viton Seal, these valves offer high flow capacity, low pressure loss, and a long operational life. With a CV of 0.43 and cracking pressure of 0.25 psig, they ensure reliable performance at a maximum temp of 120°F and 150 psig pressure. Designed with precision to prevent reverse flow and reduce seat leakage to 6 SCCM, these valves meet stringent industry standards.
Product Specifications

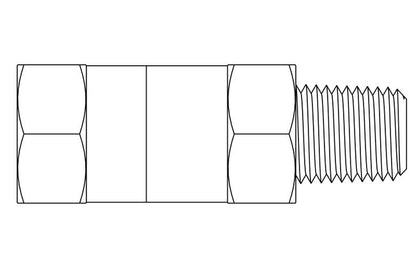

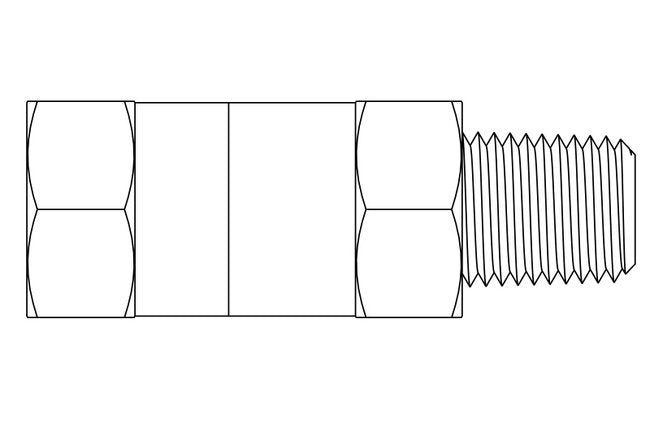

Dimensions Total Length
1.72 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.43
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
