Disk Type Check Valves - NPT Connection, Brass & Stainless Steel
Disk Type Check Valves - NPT Connection, Brass & Stainless Steel
SKU:CHE-0bf6c7
Reliable Disk Type Check Valves for liquids or gases, prevents reverse flow, durable materials, high flow capacity, low cracking pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Type Check Valves - NPT Connection, Brass & Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - NPT Connection, Brass & Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

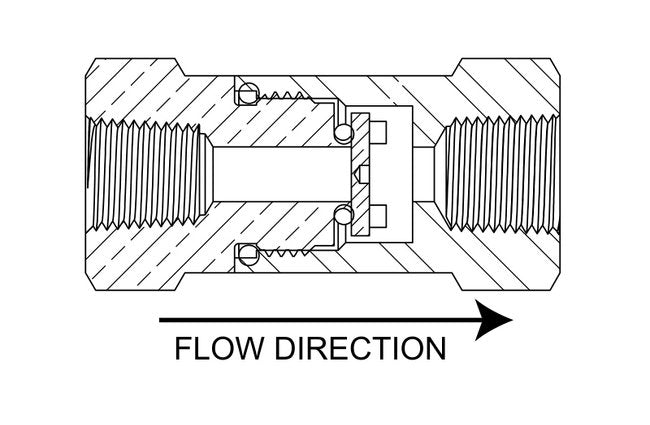

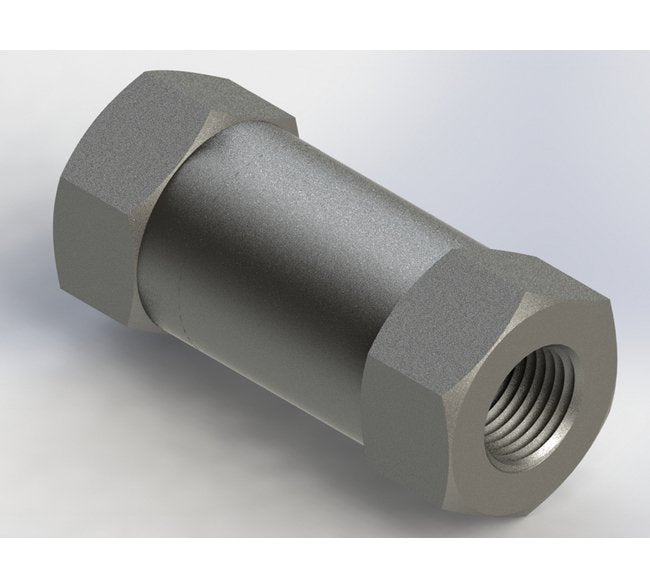

Our Disk Type Check Valves with NPT Connection feature a durable 303 SS body and Delrin disk, ensuring reliable performance with liquids or gases. Designed to allow free flow in one direction only, these valves prevent reverse flow. With a low cracking pressure, high flow capacity, and minimal pressure loss, they guarantee long-lasting operation. Ideal for industrial and institutional applications, these valves offer a CV of 0.43, maximum operating pressure of 150 psig, and maximum temperature of 120 °F.
Product Specifications

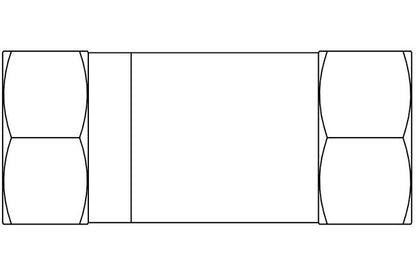

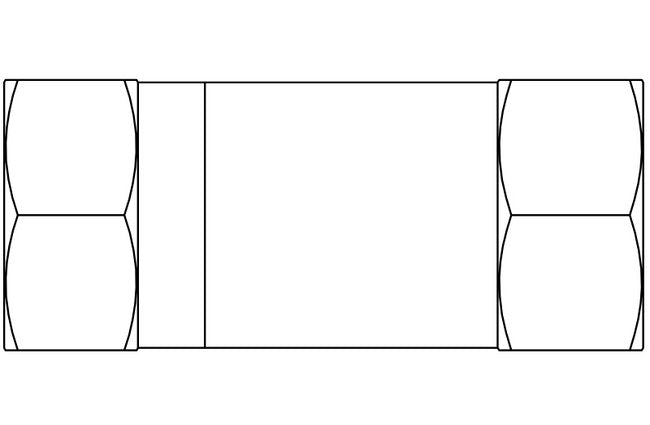

Dimensions Total Length
1.625 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.43
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
