Reliable disk type check valves in brass & stainless steel for one-way liquid or gas flow. High flow capacity, low pressure loss, and long life operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Type Check Valves - NPT Connection, Brass & Stainless Steel, Viton Seal
$29.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves - NPT Connection, Brass & Stainless Steel, Viton Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

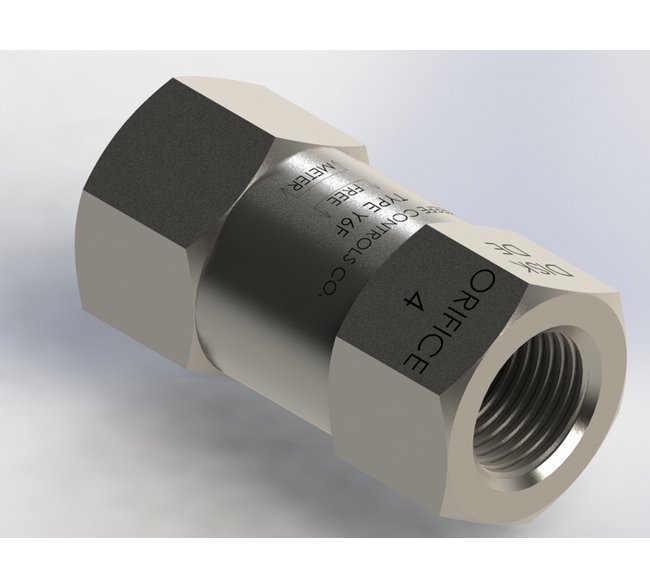

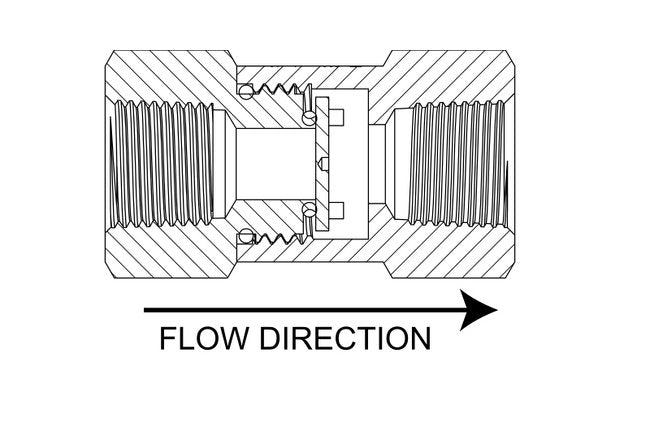

Our disk type check valves, available in brass and stainless steel, ensure reliable one-way flow for liquids or gases. With a CV of 1.09, low cracking pressure of 0.25 psig, and Viton seal, these valves offer high flow capacity, low pressure loss, and a long operational life. Featuring 303 SS body and disk materials, NPT female connections, and a maximum operating pressure of 150 psig, these valves meet stringent industry standards for durability and performance.
Product Specifications

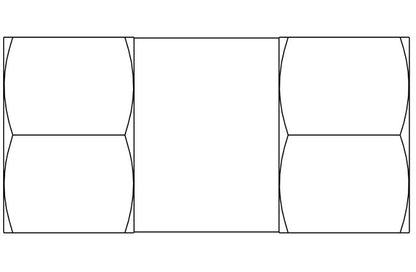

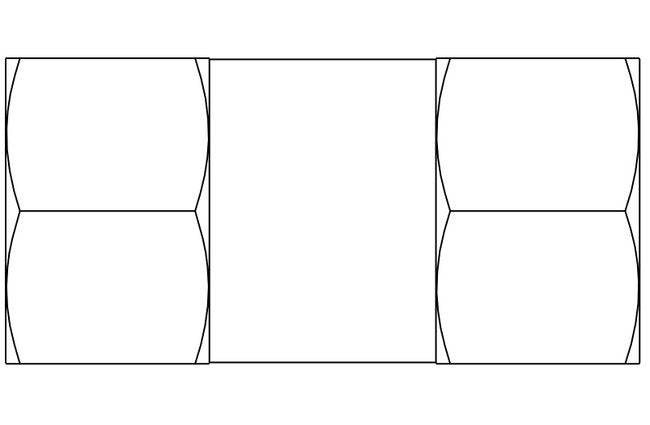

Dimensions Total Length
1.95 in
Dimensions Width Across Flats Hex
15/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
3/8" NPT Female
Specifications Connection B
3/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
1.09
Specifications Disk Material
303 SS
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
