Disk Type Check Valves with 10-32 UNF Connection
Disk Type Check Valves with 10-32 UNF Connection
SKU:CHE-d89b46
High-quality Disk Type Check Valves with 10-32 UNF Connection for precise flow control in liquids or gases.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Disk Type Check Valves with 10-32 UNF Connection
$34.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves with 10-32 UNF Connection
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

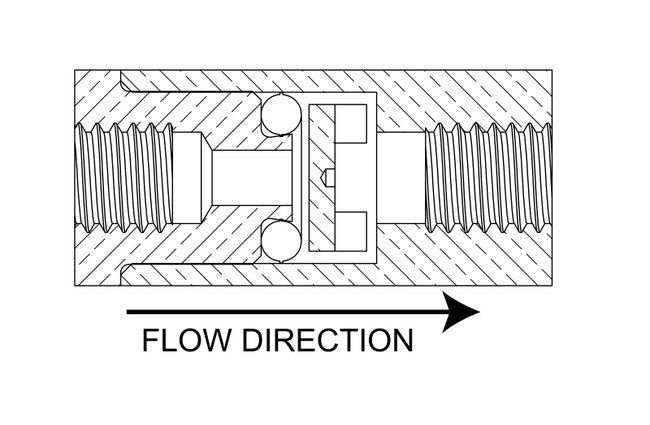

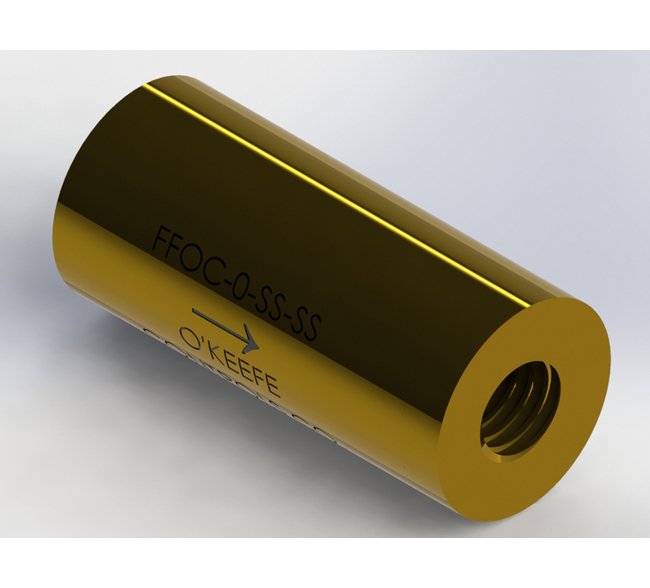

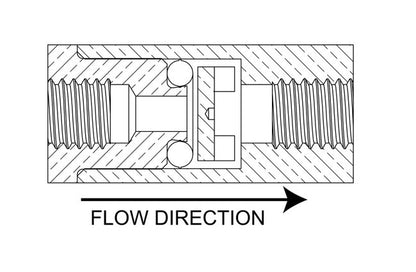

The Disk Type Check Valves with 10-32 UNF Connection and Brass construction are designed for efficient flow control of liquids or gases. Featuring a Silicone seal, low cracking pressure of 0.5 psig, and high flow capacity, these valves ensure reliable and long-lasting operation. With a maximum operating pressure of 125 psig, and a maximum temperature of 225 °F, they meet stringent quality standards for institutional and government procurement, offering minimal seat leakage and low pressure loss.
Product Specifications
Dimensions Outside Diameter
3/8 in
Dimensions Total Length
0.830 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Connection A
10-32 UNF Female
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
0.5 psig
Specifications Cv
0.150
Specifications Disk Material
Brass
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Silicone
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
