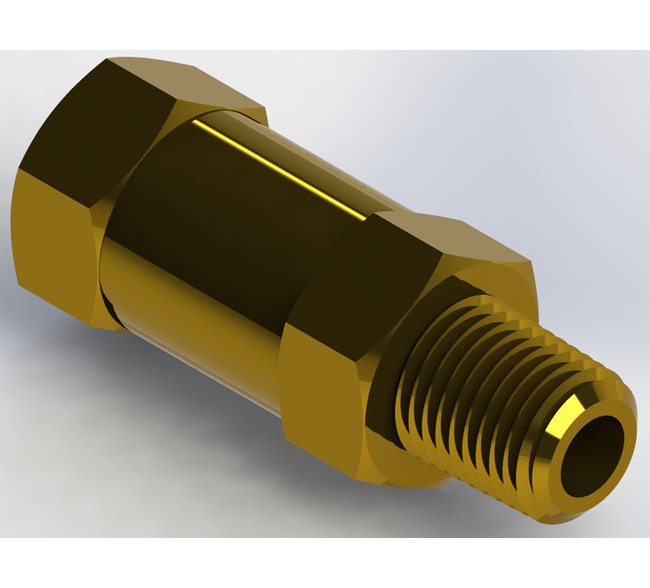

Disk Type Check Valves with Brass Body - 1/4" NPT Connections, Viton Seal
Disk Type Check Valves with Brass Body - 1/4" NPT Connections, Viton Seal
SKU:CHE-74f40a
High-performance Disk Type Check Valves for liquids or gases, with Brass Body and Viton Seal.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Disk Type Check Valves with Brass Body - 1/4" NPT Connections, Viton Seal
$29.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves with Brass Body - 1/4" NPT Connections, Viton Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

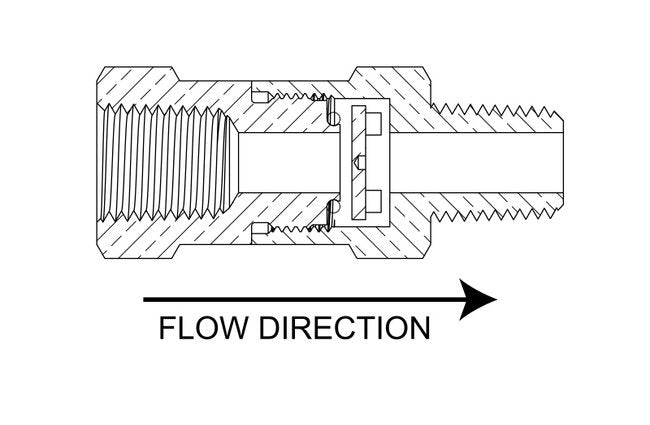

Our Disk Type Check Valves with Brass Body are designed for reliable performance in liquid or gas applications. Constructed with a Brass Body, Delrin Disk, and Viton Seal, these valves ensure high flow capacity, low pressure loss, and long life operation. With a CV of 0.61 and a cracking pressure of 0.25 psig, these valves prevent reverse flow efficiently. Ideal for institutional and government procurement, these valves meet stringent quality standards.
Product Specifications

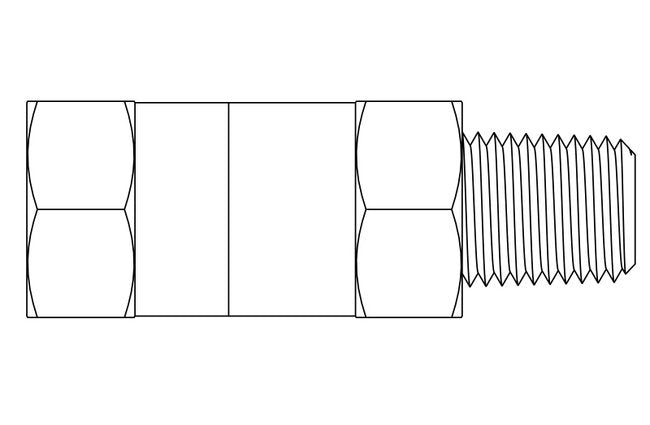

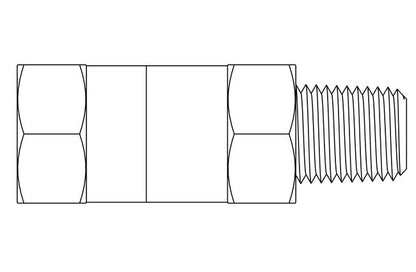

Dimensions Total Length
2.11 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
