Disk Type Check Valves with NPT Connection
Disk Type Check Valves with NPT Connection
SKU:CHE-d3f912
High flow disc check valves with NPT connection for reliable one-way flow control in liquids or gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Disk Type Check Valves with NPT Connection
$49.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves with NPT Connection
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

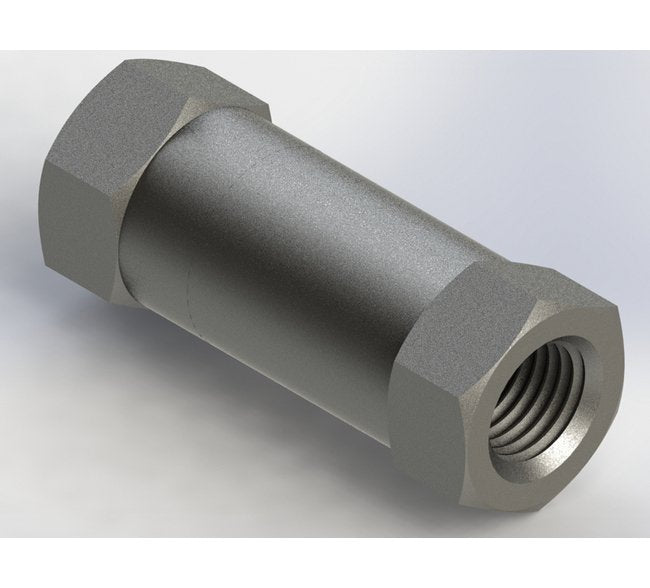

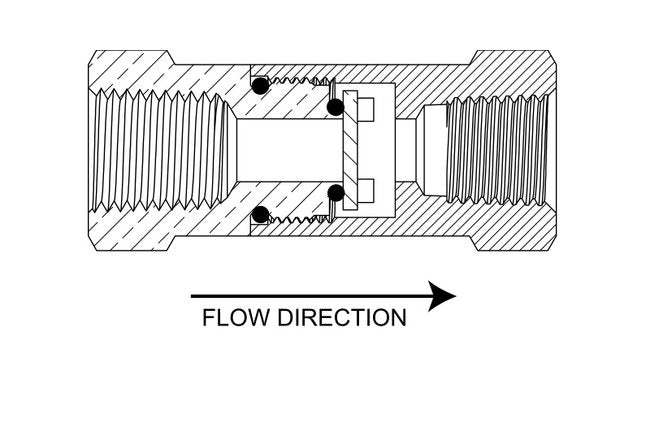

The Disk Type Check Valves with NPT Connection offer high flow capacity, low pressure loss, and long-lasting operation. Constructed with 303 SS body and disk materials, Viton seals, and a cracking pressure of 0.25 psig, these valves ensure reliable performance in liquids or gases. With a maximum temperature of 225°F and a maximum operating pressure of 150 psig, they prevent reverse flow effectively. Their 1/4" NPT female connections and hex width of 3/4 inch make installation easy, while meeting institutional procurement standards for durability and efficiency.
Product Specifications

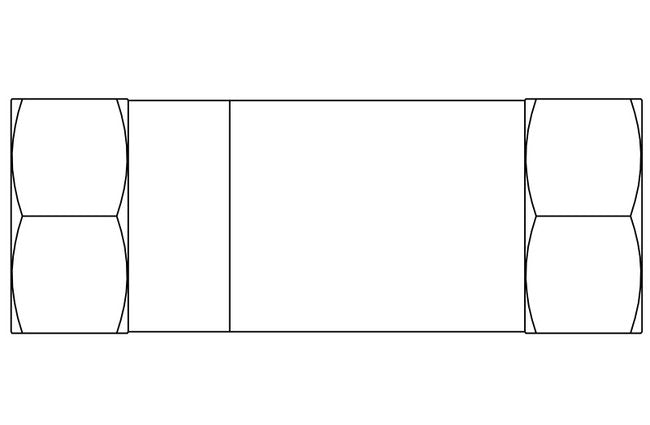

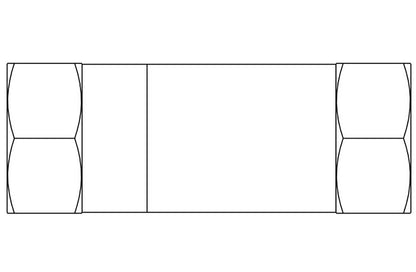

Dimensions Total Length
2.02 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
303 SS
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
