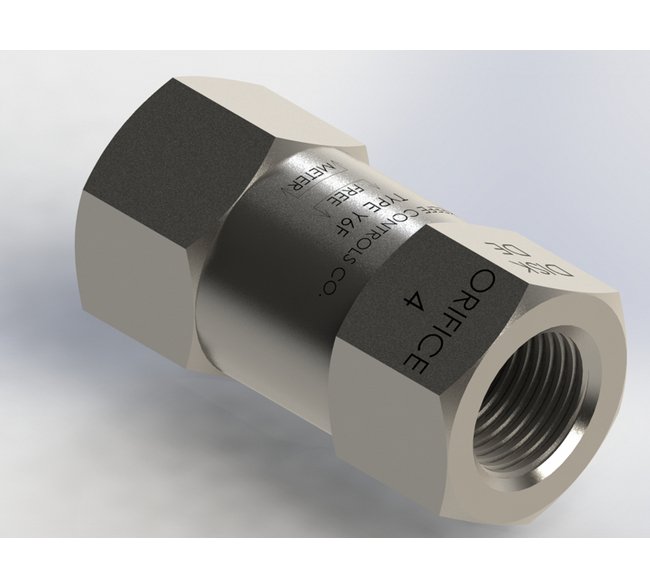

Disk Type Check Valves with NPT Connection - Brass & Stainless Steel Options
Disk Type Check Valves with NPT Connection - Brass & Stainless Steel Options
SKU:CHE-40b1d1
High-quality Disk Type Check Valves with NPT Connection for reliable one-directional flow. Ideal for liquids or gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Disk Type Check Valves with NPT Connection - Brass & Stainless Steel Options
$49.99
Quantity: 1
Claim Your Seller Account
Disk Type Check Valves with NPT Connection - Brass & Stainless Steel Options
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

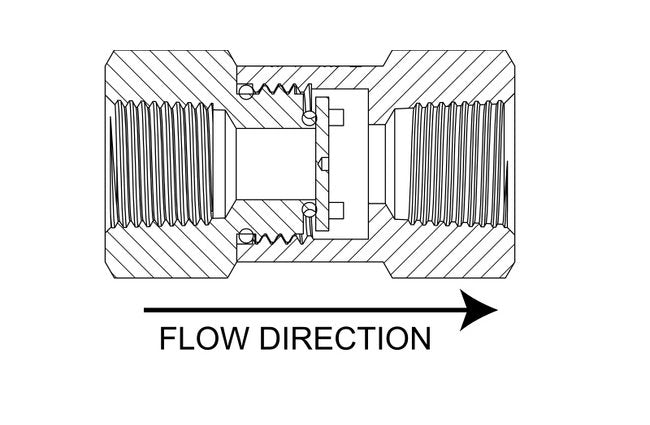

Discover reliable Disk Type Check Valves with NPT Connection in brass and stainless steel options. Designed for liquids or gases, these valves ensure one-directional flow, preventing reverse flow. Crafted with quality materials like 303 SS body, Delrin disk, and Viton seal, they offer a CV of 1.09, low cracking pressure of 0.25 psig, and maximum operating pressure of 150 psig. With features like high flow capacity, low pressure loss, and long life operation, these valves are ideal for various applications, ensuring efficiency and durability.
Product Specifications
Dimensions Total Length
1.95 in
Dimensions Width Across Flats Hex
15/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
3/8" NPT Female
Specifications Connection B
3/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
1.09
Specifications Disk Material
Delrin
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
120 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
