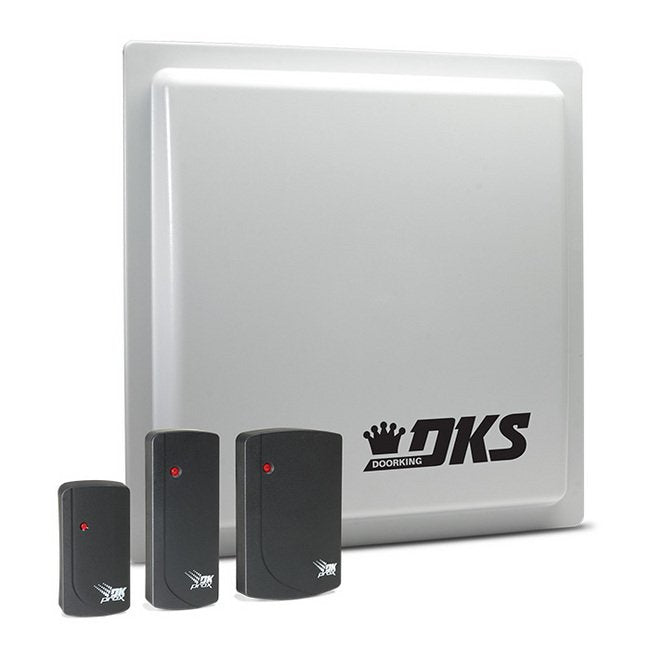

Enhance access control in commercial, industrial, and institutional settings with the DK Proximity Card Reader. Sealed in epoxy for vandal resistance, this reader offers up to 4-inch read range, ideal for both indoor and outdoor applications. With features like 26-bit Wiegand output, maintenance-free passive card technology, and compatibility with different mounting styles, including AVI systems, this reader ensures secure access control tailored to your specific needs.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
A full line of Proximity Card Readers in different mounting styles to meet all needs.
Key Features Key Features
Because physical contact is not required, proximity card readers can read card data through common building materials like: concrete, brick, stone, drywall, plaster, glass, wood, plastic...in fact, through anything but metal.Proximity card readers are maintenance free. There are no parts to wear out or adjust.Passive card technology provides an unlimited number of "card reads" with no battery to wear out.Passive cards, unless they are physically abused, will last virtually forever.Clamshell, ISO Graphic and KeyTag type cards are available.Read ranges are not absolute and will vary depending on several factors including where the reader is mounted, the mounting surface and product application.These card readers output their data in 26-bit wiegand format.Most card readers operate on 12 VDC. AVI systems may operate at different voltages.These card readers are not designed for stand-alone operation (see 1520/1524 readers) and must be connected to an access controller (DKS 1830 Series systems).
Specifications Automatic Vehicle Identification Avi Reader Range
8 to 25 ft
Specifications Direct Current Dc Voltage
12 V
Specifications Industry Uses
Commercial | Condominium | Gated Communities | Industrial | Maximum Security | Mixed Use | Parking | Residents Hall | Self Storage
Specifications Limited Factory Warranty
5 y
Specifications Operating Temperature
-35 to 65 ºC | -31 to 149 ºF
Specifications Output Type
26-bit Wiegand
Specifications Proximity Card Reader Range
2 to 4 in
Technical Specifications Technical Specifications

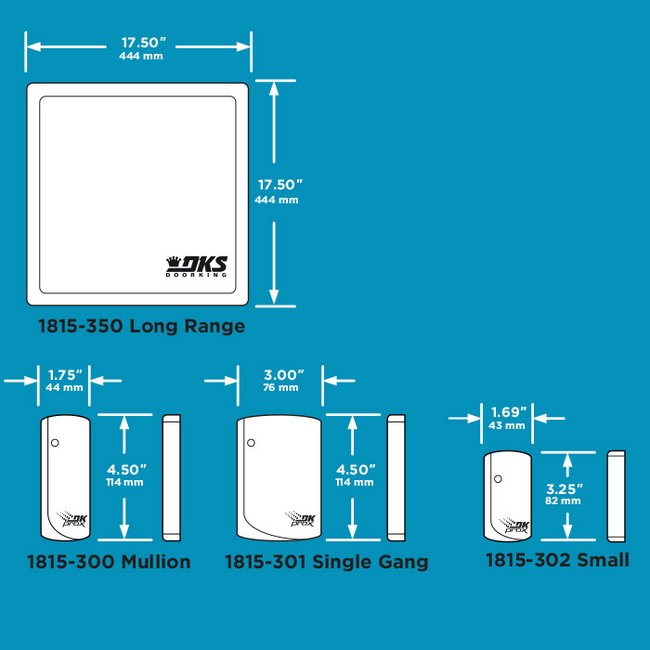

DK Prox Readers1815-300; up to 3-inch read range.1815-301; up to 4-inch read range.1815-302; up to 2-inch read range. Fits inside 1830 90 Series telephone entry systems.1815-305; up to 12-inch read range.1815-330; 1815-300 reader on a surface mount enclosure.1815-333; same as 1815-330 but also includes a 2358-010 Tracker expansion board1504-124; 1815-300 mounted on surface enclosure with built in intercom substation.DK Mifare Card Readers1815-600 mullion mount1815-601 single-gang electrical box mount2 - 4 inch read rangeReads 13.56 MHz Classic 4-Byte UID cardsDK Prox Long Range (AVI) Reader1815-350: adjustable read range; 8 ft to 25 ft.Two different operating modes: timing and trigger.Uses frequency hopping technology in the UHF frequency band (902 - 928 MHz).Adjustable timing intervals between consecutive readings of same tag.Uses passive tags - no batteries to worry about.Dual technology cards are available allowing a single card to be used with both AVI and standard DK Prox readers.AWID Readers1815-280 (SR 2400); up to 4-inch read range.1815-281 (SP 6820); up to 8-inch read range.1815-282 (MM 6800); up to 8-inch read range.1815-290; 1815-280 reader on a surface mount enclosure.1815-292; same as 1815-290 but also includes a 2358-010 Tracker expansion board.1504-122; 1815-281 mounted on surface enclosure with built in intercom substation.1815-283 (MR 1824); up to 24-inch read range. Includes regulated power supply.1815-284 (MR 1824 MC); metal compensated; up to 16-inch read range. Includes regulated power supply.Long Range Vehicle Tag Reader1815-170 (LR 3000).1815-168 Installation Kit.1815-162 Power Supply.1508-072 Mounting Bracket.Read range varies depending on the type of tag used. Maximum read range is 15 feet.Installation kit is highly recommended for proper setup (AWID Policy.)HID Readers1815-380 (ProxPoint Plus); up to 3-inch read range. Fits inside 1830 90 Series telephone entry systems.1815-381 (MiniProx); up to 5-inch read range.1815-382 (ThinLine II); up to 5-inch read range.1815-390; 1815-382 reader on a surface mount enclosure.1815-392; same as 1815-390 but also includes a 2358-010 Tracker expansion board.1504-123; 1815-382 mounted on surface enclosure with built in intercom substation.1815-395 (MaxiProx); Up to 6-foot read range with 1508-014 tags.Includes regulated power supply.
