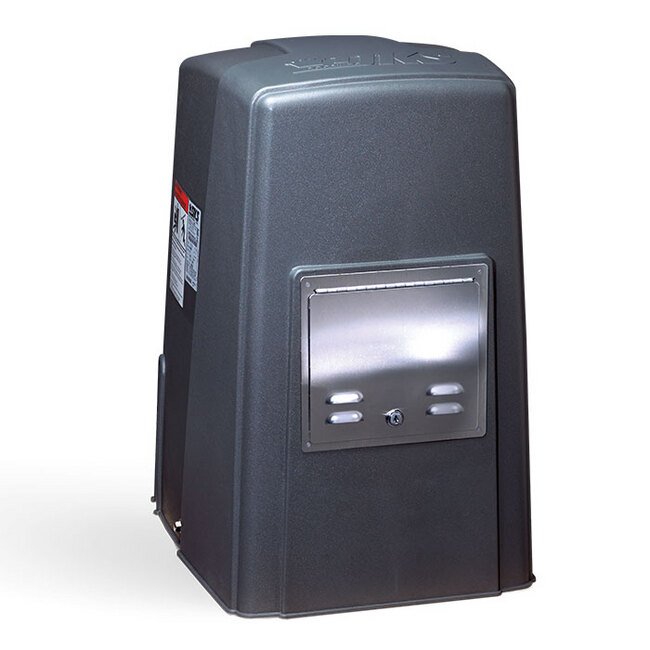

DKS 9000 1/2 HP Motor Slide Gate Operator
DKS 9000 1/2 HP Motor Slide Gate Operator
SKU:SLI-905fa4
Powerful and quiet 1/2 HP Slide Gate Operator with advanced safety features for residential, commercial, and industrial applications.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
DKS 9000 1/2 HP Motor Slide Gate Operator
$2,199.99
Quantity: 1
Claim Your Seller Account
DKS 9000 1/2 HP Motor Slide Gate Operator
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DKS 9000 1/2 HP Motor Vehicular Slide Gate Operator is a powerful and quiet access control solution designed for residential, commercial, and industrial settings. Featuring a steel frame and belt drive/gear-box reduction system, this slide gate operator ensures smooth and reliable operation. With advanced microprocessor control circuitry and versatile design, the DKS 9000 is equipped to handle most slide gate operation requirements. Compliance with Underwriters' Laboratories (UL) 325 and 991, as well as Edison Testing Laboratories (ETL) Listed standards, guarantees safety and quality performance. Ideal for high-use applications, this operator offers a durable solution for gate automation needs.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
Belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation.
Applications Applications
Commercial / IndustrialResidential
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features

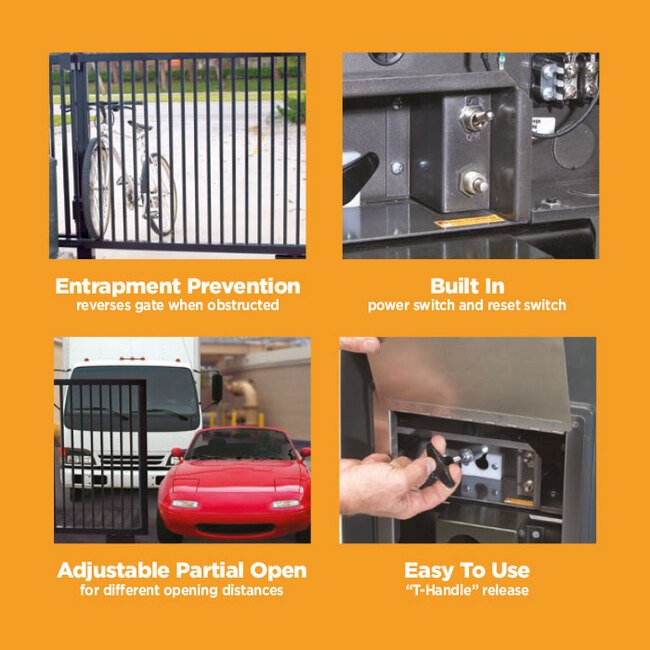

Steel frame provides strength and quiet operation"T-Handle" release is easily accessible from front of operatorOperator re-connects automatically when handle is releasedDirect driven limit nuts for precise gate controlAuto-close timer 1-30 secondsPorts for plug-in open and reverse loop detectors - DKS detectors onlySelectable loop/reverse input function; stop or reverseAnti-tailgating feature helps to control un-authorized trafficStandard normally closed stop circuitGate Tracker reporting output provides operator data to DKS access control systemConvenience outlets for accessory transformersBuilt-in power switch and alarm reset switchSimple bi-parting gate interface
Options Options
Plug-in loop detectors.Heater kit for cold environments.Base Plate for post mounting.Secondary entrapment prevention devices.Bi-parting gate connection cable.Gate operator control stationsPostal and Fire Dept lock boxesSurge suppressors, time clocks, traffic signal.
Specifications Alternating Current Ac Voltage
115 V | 208 V | 460 V
Specifications Anti Tailgate Feature
Yes
Specifications Auto Close Timer
1 to 30 s
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Convenience Outlets Alternating Current Ac Voltag
115 V
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Frame Material
Steel
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limited Warranty On Tunnel Sections Spike Section
1 y
Specifications Manual Release
Yes
Specifications Maximum Gate Length
35 ft
Specifications Maximum Gate Weight
1000 lb
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad/Post
Specifications Note
Convenience outlets for accessory transformers
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
No
Specifications Speed
1 ft/s
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Slide
Technical Specifications Technical Specifications
Frame: 3/16 (4.7 mm) steel, corrosion protectedCover: 1/4 (6.3 mm) inch polypropyleneReduction: belt driven 30:1 gear reduction running in a continuous oil bathSpeed: Approximately 1 ft (.3 m)/sec (30.5 cm/sec)Chain: Unit is shipped with 20 ft (6 m) of #40; roller chainManual Release: "T-Handle" release is easily accessible from front of operator. Operator re-connects automatically when handle is releasedGATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate width 35-ft.Maximum gate weight 1000 pounds (1/2 HP). (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)1/2 continuous-duty motor115 VAC, 60 Hz, 5.4A, 208 VAC, 60 Hz, 2.8A, 460 VAC, 60 Hz, 1.4A (These operators use a step-down transformer to achieve 115 VAC operating voltage.)Class I, II, III and IV applicationsCompliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 18.375 "W x 31.675 "H x 23.25 "D
