DKS 9500 Series 7.5HP Maximum Security Slide Gate Operator
DKS 9500 Series 7.5HP Maximum Security Slide Gate Operator
SKU:MAX-4d8bd3
Enhance security with the DKS 9500 Series 7.5HP Slide Gate Operator. Robust, efficient, and compliant with ETL standards.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
DKS 9500 Series 7.5HP Maximum Security Slide Gate Operator
$4,999.99
Quantity: 1
Claim Your Seller Account
DKS 9500 Series 7.5HP Maximum Security Slide Gate Operator
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

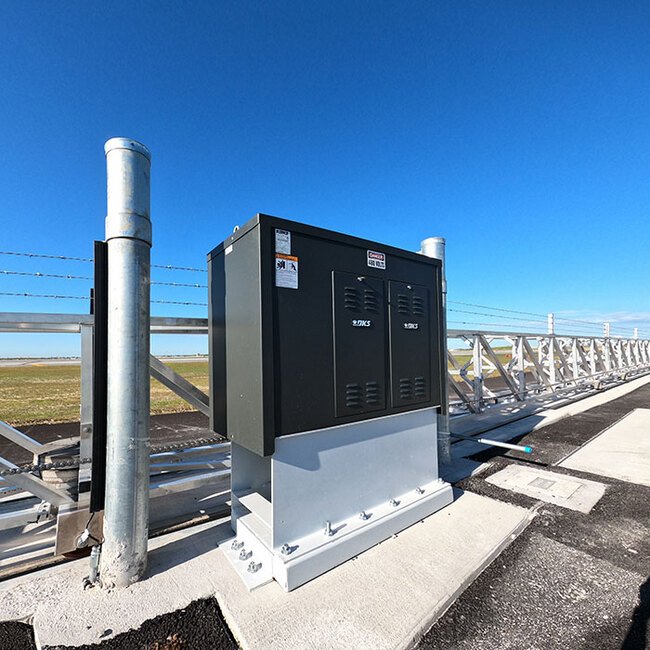

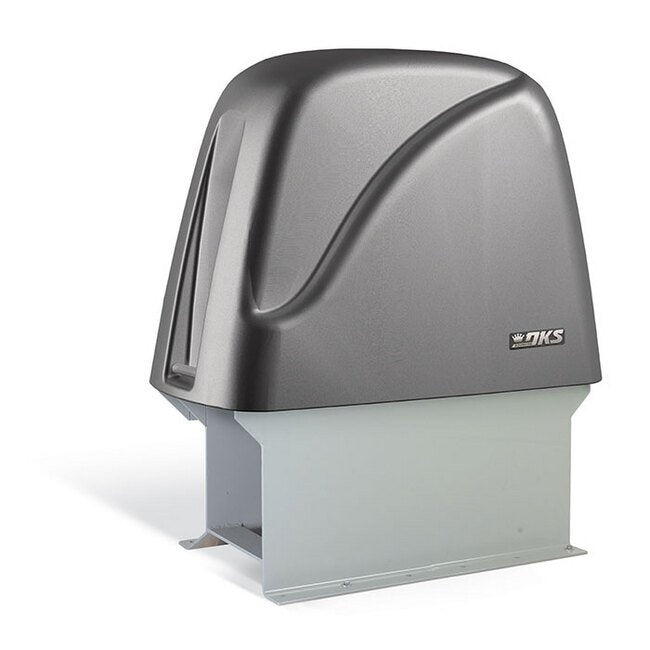

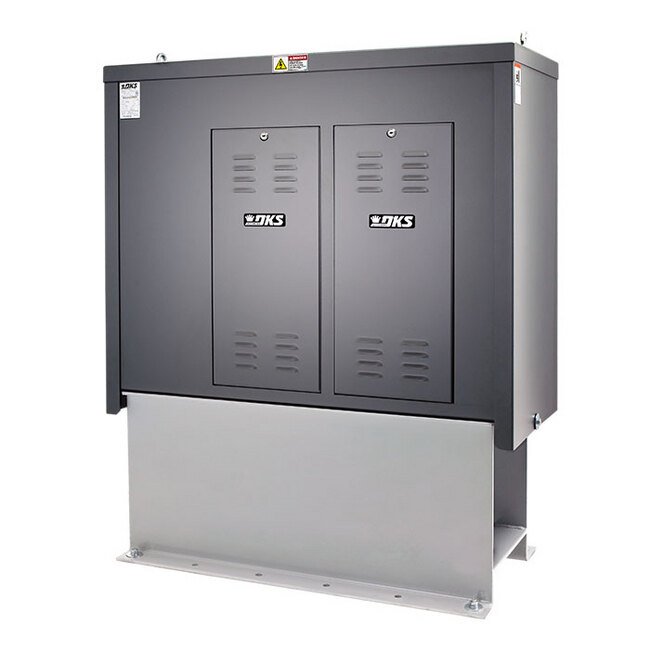

The DKS 9500 Series 7.5HP Maximum Security Slide Gate Operator sets the standard for robust perimeter security. Designed for maximum security applications, it features a heavy-duty steel mounting pedestal, 7.5HP motor power, and the ability to move gates up to 160 feet long and 25,000 pounds swiftly at 4 feet per second. With advanced features like gate reporting, speed control module, anti-tailgating feature, and fail-secure operation, this operator ensures reliable and efficient performance in Class III and IV applications. Compliant with ETL standards and equipped with essential safety features, the DKS 9500 Series guarantees unmatched security.
Product Specifications
Additional Information Additional Information
Our experience in the industry has taught us not to overlook this critical component - especially considering our Operators can move gates up to 160 feet long and 25,000 pounds. Not only can we move massive gates, but we can move them quickly in an emergency at a rate of 4 feet per second.A customer-favorite feature is our Gate Reporting, which delivers the who-where-when of entry and exit, and also alerts users to gate obstruction and other issues. While the sheer strength of our Gate Operators is top tier, weâve built them with a host of valuable features to create the most robust Maximum Security line on the market. For reliable perimeter security built by experience, choose DKS.This assures your security gate is open the absolute minimum amount of time necessary.ALL 9500 SERIES OPERATOR ORDERS MUST BE COORDINATED THROUGH A DoorKing® REGIONAL SALES MANAGER.
Applications Applications
Maximum Security
Key Features Key Features
Speed control module.Slow start / slow stop.Direct driven limit nuts.Anti-tailgating feature.Adjustable partial open..Gate tracker reporting output.Built-in diagnostics.Ports for plug-in loop detectors.Selectable stop / reverse loop functions.Two 115 VAC convenience outlets.Fail-secure operation includes crank for manual operation.Programming switches.Built-in 3-button control (open-close-stop)Built-in power On/Off switch.
Options Options
Plug-in loop detectors.Gate Tracker reporting (DKS 1833, 1835, 1837 or 1838 access controllers only).Chain tray (recommended on gates exceeding 20-ft in length).Non-contact and/or contact sensing devices.Stop - Go traffic signal.Heater kit for cold environments.Surge suppressors.
Specifications Alternating Current Ac Voltage
208 V | 230 V | 460 V
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Maximum Gate Length
160 ft
Specifications Maximum Gate Weight
25000 lb
Specifications Motor Power
7.5 hp
Specifications Mounting Type
Heavy-Duty Steel Mounting Pedestal
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Standards
Edison Testing Laboratories (ETL) Listed
Technical Specifications Technical Specifications

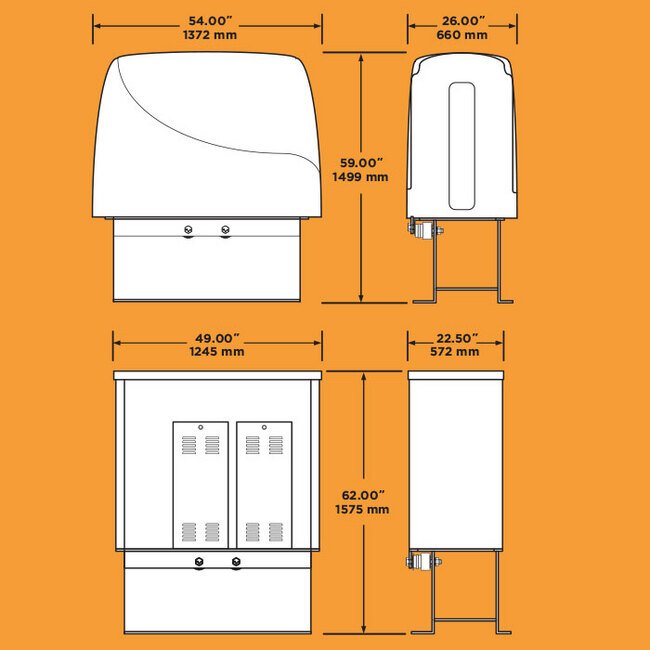

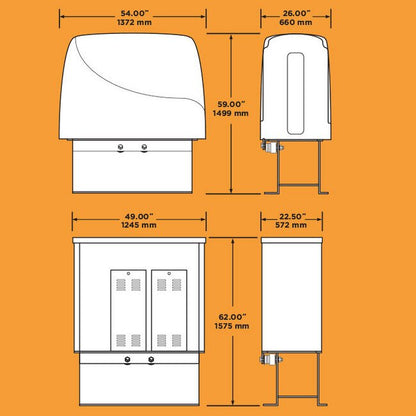

HP, maximum gate weight, speed and chain size:9575 - 7.5 HP, 25,000 Lbs., 2 ft/sec, #100; chain (10:1 gear reduction).(Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)10:1 gear reduction running in a continuous oil bath .Electronic and magnetic braking added to models with the 10:1 gear reduction.208, 230, 460 VAC three-phase.Operator is shipped with chain brackets and 20-feet of #100; chain.Class III and IV applications only.ETL Listed. A minimum of one (1) Type B1 and one (1) Type B2 entrapment protection devices are required to be installed in each direction of travel with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.Dimensions: 54 "W x 59 "H x 26 "D
