DKS Barrier Gate Auto Spike System
DKS Barrier Gate Auto Spike System
SKU:BAR-f31739
Enhance parking lot efficiency and security with the DKS Barrier Gate Auto Spike System. Easy-to-use and compliant with UL standards.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
DKS Barrier Gate Auto Spike System
$1,999.99
Quantity: 1
Claim Your Seller Account
DKS Barrier Gate Auto Spike System
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

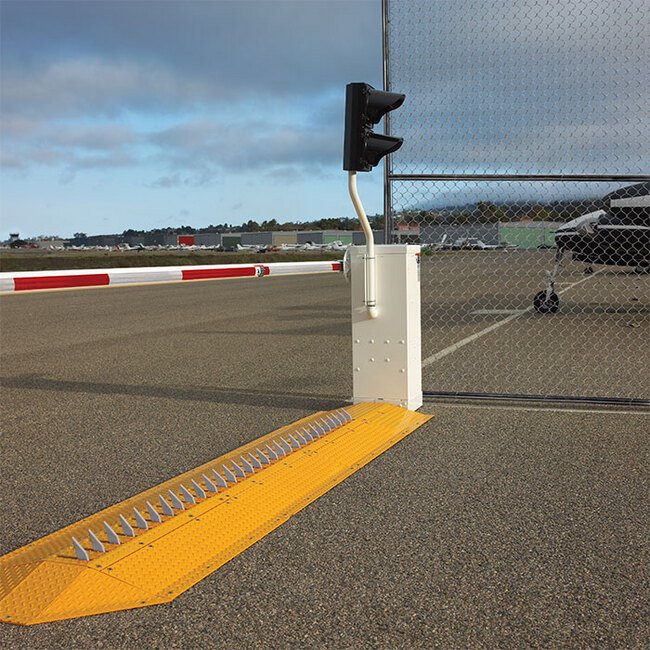

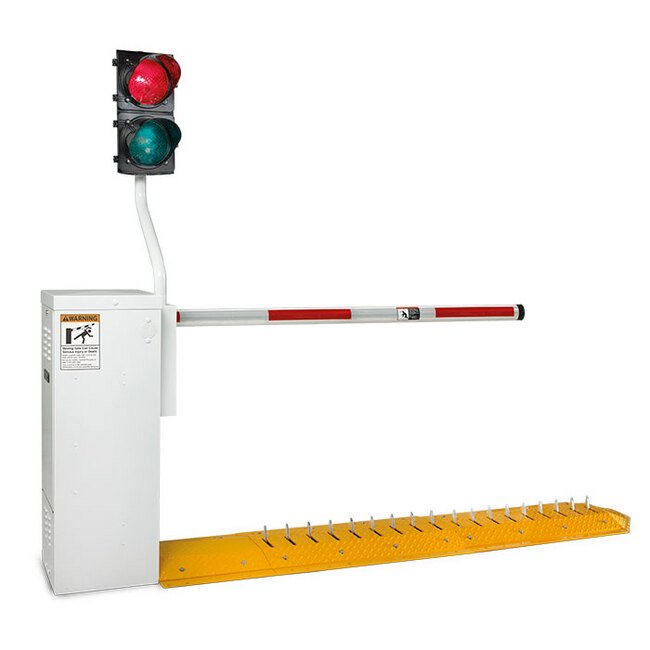

The DKS Barrier Gate Auto Spike System is a top-of-the-line solution for controlling traffic with precision and security. Designed to enhance parking lot efficiency, this system features durable octagonal or round aluminum barrier arms, magnetic limit switches, and a pedestrian protection system for enhanced safety. With automated sequencing inputs, plug-in loop detector ports, and UL 325 and 991 compliance, this system ensures hassle-free traffic control in commercial and industrial settings. Ideal for maximizing security and efficiency in parking facilities, government agencies, and more.
Product Specifications
Additional Information Additional Information

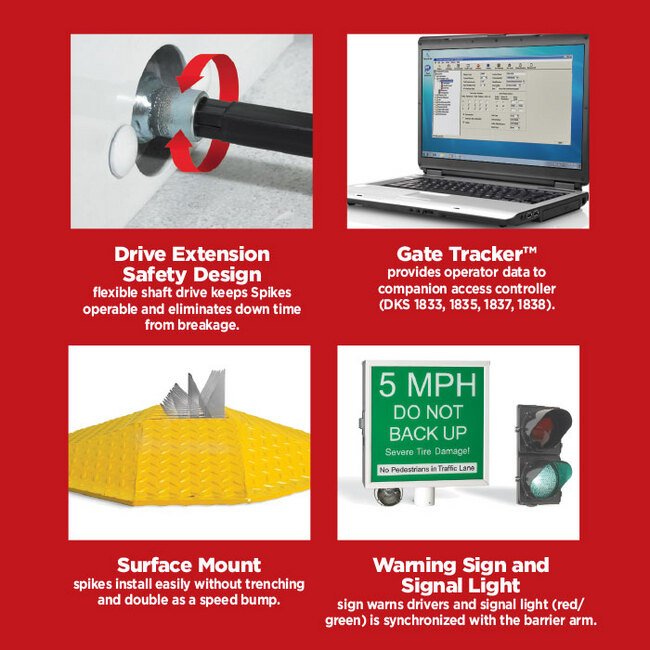

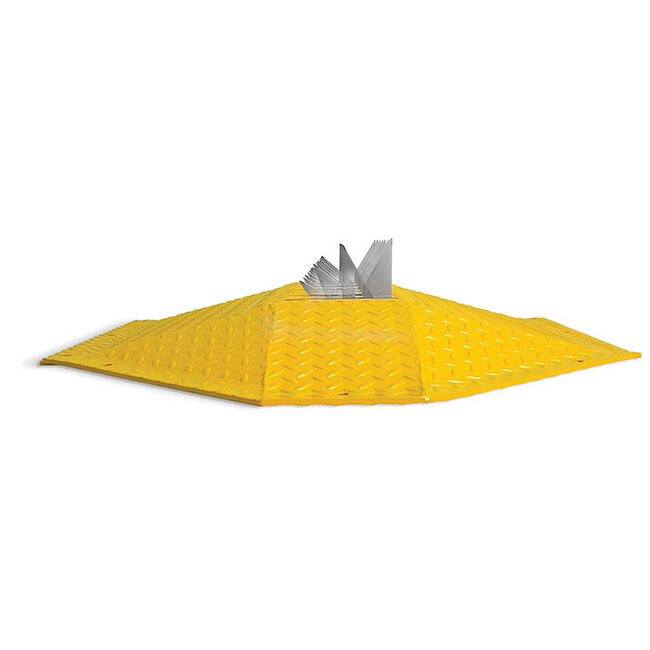

For more secure locations our customers choose the 1620 Surface Mount Lane Barrier or Spring Loaded Auto Spikes for greater control without trenching. Lane breach deterrence is best achieved with mechanically-linked Surface Mount Auto Spikes, or the Steel Rotating Lane Barrier provide a more formidable perimeter, complete with required warning signs and signal lights. The optional Backup Battery means no property will be out of commission in the event of a power outage.A host of experience-born features ensure DKS products serve all types of locations, from industrial and commercial properties, gated communities, residence halls and apartment complexes, retail parking, rental car garages, self storage facilities, schools, government agencies and more. The DKS Pedestrian Protection System reduces liability by watching out for people in the path of the arm while the Reversible Edge Vehicle Awareness Sensor prevents damage when vehicles havenât cleared the flow point. Mountable on the left or right, DKS Traffic control products also offer Back Up Detection, Perimeter Access Management to sequence with Swing and Slide Gate Operators, and of course, Gate Tracker Reporting to know about the who, where, when of traffic traveling in and out of the property. With all the features to keep you moving forward, it's DKS.A typical system will require the 1603 Operator, a Drive Extension, Tunnel Section(s) as needed, Spike Section(s) as needed, and an end cap. A Traffic Signal and/or Warning Sign is required with this system. Contact your professional DKS system installer, or DoorKing® directly, for more information on complete system requirements.CAUTION: not to be used in areas subject to freezing weather with the potential for snow and ice accumulation. Maximum 20,000 Lb. per axle weight limit on spike sections.FOR A HIGHER DEGREE OF TRAFFIC CONTROLThe DKS 1603 Barrier Gate Operator Automated Spike System is designed as a modular system, allowing for easy flexibility in different applications and easy installation. The 1603 Operator is designed with many advanced features and mechanically links the Spikes to the Barrier Arm. Ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.
Advantages Advantages
Used for a Higher Degree of Traffic Control
Applications Applications
Commercial / Industrial BuildingsParkingMaximum Security
Key Features Key Features
Mechanically links traffic control autospikes to the operator armDesigned for single lane (14 ft maximum) traffic lanesElectronic magnetic limit settingsOctagonal lighted arms and low headroom folding arm kits availablePedestrian Protection System availablePorts for plug-in loop detectorsAutomatic sequencing inputs for use with slide and swing gate operatorsUp input memory bufferDown memory optionMultiple up commandsTwo convenience outletsGate tracker reporting outputProgramming switchesBuilt-in power On/Off switchLeft or right hand mount
Options Options
14 - Foot Octagonal Aluminum Arm14 - Foot Octangonal Aluminum Arm Rev Edge + Lighted Red / Green LEDs14 - Foot Octangonal Aluminum Arm Rev Edge14 - Foot Round Aluminum ArmAluminum Octagonal Lighted Barrier Armâs LEDs are RED when the arm is down and turn to GREEN when the arm rotates full up2-Piece Arm 14 Ft (4.27 m): The two-piece Aluminum Arm Ships in a 7-ft (2.13 m) long box to reduce shipping cost. Two piece design does not accept light kitDKS Pedestrian Protection SystemPlug-in loop detectorsDC powered convenience openHeater kitFan kitSurge suppressorsManual Crank kit
Specifications Alternating Current Ac Voltage
115 V | 230 V | 460 V
Specifications Aluminum Arms Length
14 ft
Specifications Angular Speed
2.5 s | 90 s
Specifications Auto Sequence
Yes
Specifications Available Spike Sections
3 ft
Specifications Available Tunnel Sections
18 ft
Specifications Barrier Arm Low Ceiling
Folding Arm Kit Available
Specifications Barrier Arm Type
Octagonal Aluminum (14 Feet (ft)) | Round Aluminum (14 Feet (ft))
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
yes
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limited Warranty On Tunnel Sections Spike Section
1 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Fail Secure
Specifications Maximum Arm Length
14 ft
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Left or Right Hand
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
1.6 to 46 ºC | 35 to 115 ºF
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991
Specifications Usage
Ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.
Technical Specifications Technical Specifications

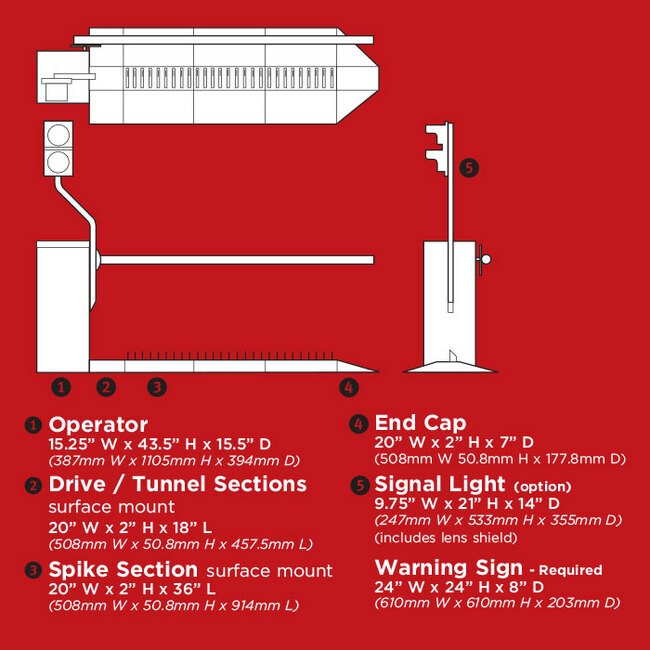

1/2 HP continuous-duty motor.115 VAC, 60 Hz, 5.4A, 230 VAC, 60 Hz, 2.7A, 460 VAC, 60 Hz, 1.4A (230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)40:1 gearbox running in a continuous oil bath.Arm rotates 90º in approximately 2.5 seconds.Class II, III and IV applications.Dimensions: 15.25 "W x 43.5 "H x 15.5 "D.Magnetic Electronic Limit ControlsAuto-Close timer 1-23 secondsP.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate OperatorUp Input Memory BufferDown Memory OptionMultiple Up CommandsPort for plug-in Open (Up) DetectorPort for plug-in Reverse (Down) DetectorProgramming SwitchesBuilt-in Power On/Off SwitchDKS Pedestrian Protection System: The system reverses Barrier Arm if person is detected, and lowers Barrier Arm if unauthorized vehicle enters. Requires DKS 9411 Loop Detector and a photo-beam.Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Spike ComponentsMaximum 20,000 Lb. per axle weight limit.Tunnel sections surface mount: 31 "W x 3 "H x 24 or 36 "LSpike sections surface mount: 31 "W x 3 "H x 36"LEnd Cap: 31 "W x 3 "H x 12.25 "L
