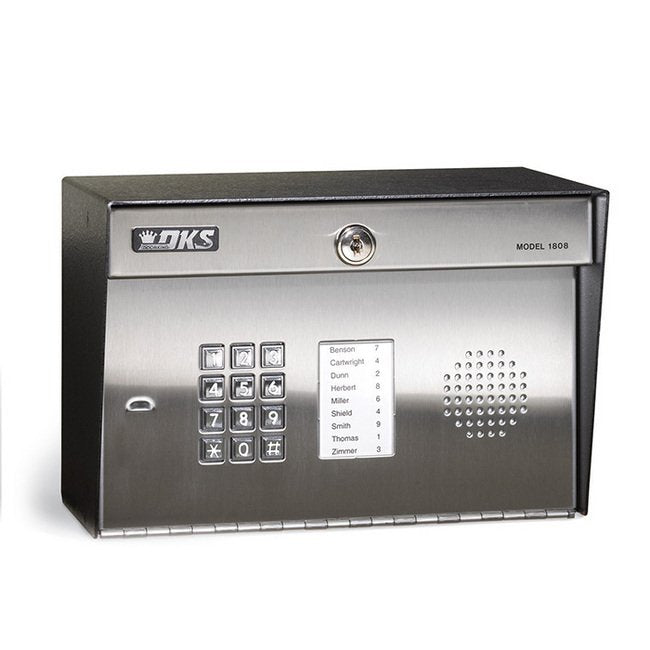

The DKS Series Access Plus Telephone Entry System is a versatile solution designed for residential and small multi-resident complexes. This system allows voice communication for up to 27 residents, with the capability to control up to six additional access points. It is PC programmable, IP addressable for easy programming from a PC via LAN or internet, and comes with built-in modem functionality. With features like hands-free full-duplex voice communication, built-in directory, and support for various access control devices, this system is ideal for small to medium multi-resident complexes seeking an efficient and secure entry solution. Compliant with Underwriters' Laboratories (UL) 294 and ETL Listed standards, it ensures reliability and safety for your access control needs.
Product Specifications
Additional Information Additional Information
With a host of advanced features, the 1808 Access Plus offers a big time access control system for smaller applications at an affordable price.
Advantages Advantages
Ideal for applications with limited space.Built-in directory window for 12 names.Surface mount only.Small to medium Multi-resident/tenant complexes.
Applications Applications
Apartment / College Residents HallsCommercial / Industrial BuildingsApartment Complex / Gated CommunitiesMixed Use Buildings
Key Features Key Features
Up to 27 phone numbers (23 additional with 1816 AP intercom expansion)IP addressable - program from your PC via direct connection, LAN or InternetOptional cellular adapter available for wireless serviceAccess Plus Account Manager software is a free downloadOptional relay board allows use of existing 26-bit wiegand devicesHoliday scheduleFour (4) hold open time zonesSchedule un-lock / lock timesEmail notificationsLive relay control from your PC100 device codes (card, keypad, transmitter)500 event history buffer10 temporary access codesBuilt-in directory for 12 namesVoice CommunicationProvides voice communication from the entry point via the central office telephone service for up to 27 Residents/TenantsCan provide voice communication from the entry point for up to 23 residents/tenants without central office phone service by using the 1816 Access Plus telephone intercom add-on moduleAccess ControlResidents/Tenants can control two (2) doors or gates via their touch-tone telephone after voice communication is established with their guestAccess Control devices include: Card readers, Keypads, MicroPlus RF controlsUp to six (6) additional Resident/Tenant entry points can be controlled via card, keypad or RF control
Options Options
"No phone line" intercom system in conjunction with the DKS 1816 APRF 485 Card Readers, Keypads, RF Controls and Conversion BoardsRelay board for 26-bit devicesCellular adapter
Specifications Auto Dialer Numbers
27
Specifications Built In Directory
Yes
Specifications Communication
Hands Free Full Duplex Voice Communication
Specifications Digit Dialing
20
Specifications Directory
Maximum 12 Names
Specifications Hold Open Time Zones
4
Specifications Holiday Schedule
Yes
Specifications Intercom Numbers
23
Specifications Limited Factory Warranty
2 y
Specifications Mounting Type
Surface
Specifications Number Of Built In Relays
2
Specifications Number Of Card Device Codes
100
Specifications Number Of Relays
2
Specifications Number Of Rs 485 Devices
6
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Personal Computer Pc Programmable
Direct Connection | Internet | Local Area Network (LAN)
Specifications Programming
PC Programming Access Plus Account Manager Software
Specifications Ringer Equivalence
0.0 A
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Technical Specifications Technical Specifications
16 VAC, 20 VA (250 ma)U.L. listed power transformer provided.Ringer equivalence: 0.0 A.Jack type: RJ11C or W.FCC (US): DUF6VT-12874-OT-0DOC (CAN): 1736 4507 AComplies with UL 294; ETL Listed.
