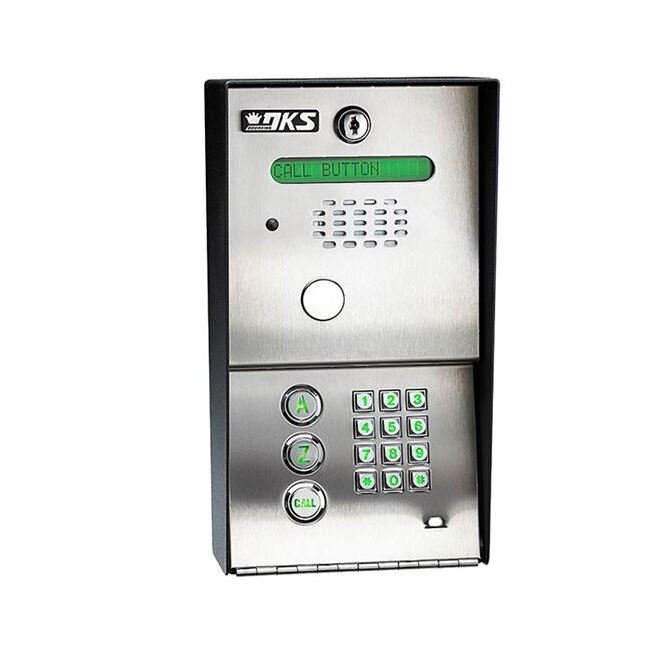

DKS Series Standard Telephone Entry System
DKS Series Standard Telephone Entry System
SKU:DKS-84b437
Enhance access control with the DKS Series Standard Telephone Entry System featuring programmable directory codes, hands-free operation, and dual-tone multi-frequency signaling output.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DKS Series Standard Telephone Entry System
$899.99
Quantity: 1
Claim Your Seller Account
DKS Series Standard Telephone Entry System
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DKS Series Standard Telephone Entry System is meticulously designed for both residential and commercial applications. It features hands-free full duplex voice communication, programmable directory codes, dual-tone multi-frequency signaling output for compatibility with PBX systems, and a built-in electronic programmable directory. With a robust construction and 100-name memory capacity, this system ensures secure access control while offering user-friendly A-Z scroll buttons and a single-line LCD display, making visitor identification seamless and efficient.
Product Specifications
Additional Information Additional Information
Simple and cost effective, the Standard Series offers a range of options from no user directory, to limited directory, or even space for a printed directory. A slim model is also available for properties with limited space to mount the System. Providing just the right fit of features, the DKS Standard Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
Telephone Entry System that is suited for applications that have limited space and can be used in residential as well as commercial applications. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. Built-in A-Z scroll buttons and CALL button.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMaximum SecurityMixed Use BuildingsSelf Storage
Key Features Key Features
Programmable directory codes (1-4 digits).16-digit dialingTwo special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.5-digit entry codes for special needs.LED lighting illuminates keypad.Built-in time clock.Hold open time zones.Entry code time zones."Flash" entry codes.Built-in postal lock provision.1802-EPD includes directory display.
Memory Options Memory Options
Phone Number Memory : 100
Specifications Alternating Current Ac Power Supply
16 V
Specifications Built In Directory
Yes
Specifications Closed Circuit Television Cctv Camera Option
Camera Ready: Optional Color Closed-Circuit Television (CCTV) Camera
Specifications Communication
Hands Free Full Duplex Voice Communication
Specifications Digit Dialing
16
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Dual Tone Multi Frequency Signaling (DTMF) tone output allows for use with PBX and auto-attendant type phone systems
Specifications Entry Code Time Zone Restrictions
Yes
Specifications Flash Entry Code
Yes
Specifications Handset Available
Hands Free Voice Operation (Optional Handset Available On Surface Mount Only)
Specifications Limited Factory Warranty
2 y
Specifications Liquid Crystal Display Lcd Programming Display
Single-line 16 character Liquid Crystal Display (LCD) directory
Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
May require additional Closed-Circuit Television (CCTV) equipment
Specifications Number Of Relays
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programming
No
Specifications Ringer Equivalence
0.0 A
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294
Specifications Time Clock
Yes
Technical Specifications Technical Specifications

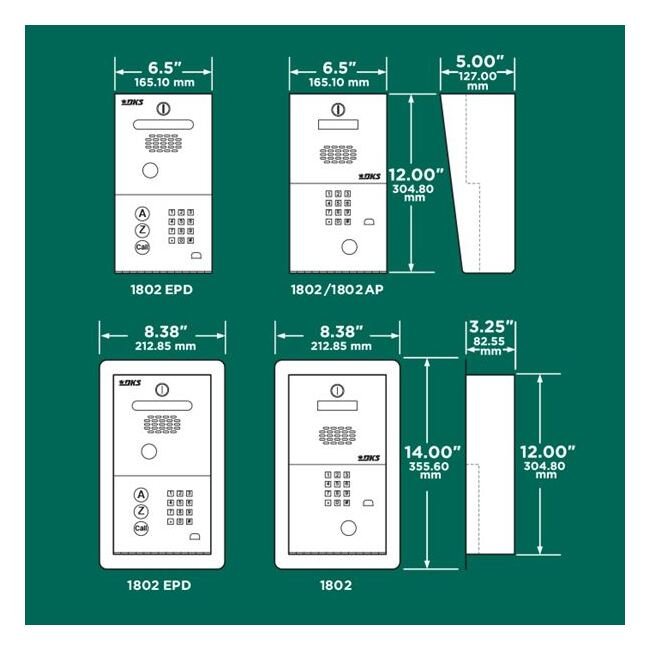

1802-EPD stores up to 100 telephone numbers and names.EEPROM Memory Chip.Full duplex communication.4-digit entry codes; 1802-EPD max. of 100.Six, 5-digit entry codes.16 VAC, 20 VA (250 ma) power transformer provided.Ringer equivalence: 0.0 A.Jack type: RJ11C or W.FCC (US): DUF6VT-12874-OT-0DOC (CAN): 1736 4507 AComplies with UL 294; ETL Listed.Surface mount dimensions: 12 "H x 6.5 "W x 5 "D.Flush mount dimensions: 14 "H x 8.375 "W x 3.25 "D.Auxiliary Inputs ( Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.)
