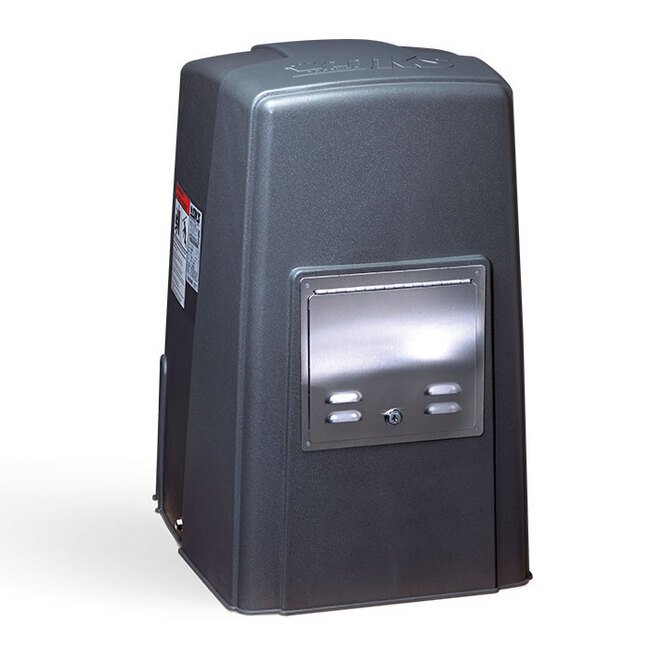

DKS Vehicular AC/DC Slide Gate Operator
DKS Vehicular AC/DC Slide Gate Operator
SKU:SLI-4bd187
Advanced Vehicular Slide Gate Operator for residential and commercial use with powerful motor, safety features, and UL compliant design.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
DKS Vehicular AC/DC Slide Gate Operator
$1,899.99
Quantity: 1
Claim Your Seller Account
DKS Vehicular AC/DC Slide Gate Operator
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DKS Vehicular AC/DC Slide Gate Operator is a robust solution designed for both residential and commercial applications. With the ability to operate on AC power with battery backup or solar power, this operator ensures continuous functionality even during power outages. Featuring a powerful 1/2 HP Quadra Drive motor and a heavy-duty steel frame, it offers reliable and quiet operation. The operator is equipped with advanced safety features such as anti-tailgating and adjustable limit nuts for precise gate control. Compliant with UL 325 and 991 standards, this gate operator guarantees both performance and safety for your entry access needs.
Product Specifications
Additional Information Additional Information
The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today.The DKS DC 6524 Swing Gate Operator is perfect where backup power is critical, as it will keep running even when AC power has been lost. The solar power version is ideal in applications where AC power is unavailable, allowing you to add your own solar system for power, or you can choose the DKS solar kit. This Swing Gate Operator offers versatile and safe operation in a small, compact design, and is ideally suited for residential or commercial applications.With protection in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Applications Applications
ResidentialCommercial
Duty Cycle Type Duty Cycle Type
150+1,2 with DK solar kit, unknown with systems / batteries provided by others1 Assumes gate is on level ground, in good condition with properly adjusted hardware.2 Assumes a 16 ft gate weighing 1000 lb. Other external factors (temperature, charge state of batteries, gate weight, gate length, etc.) will affect the performance of the Gate Operator and may reduce the number of cycles shown.
Key Features Key Features

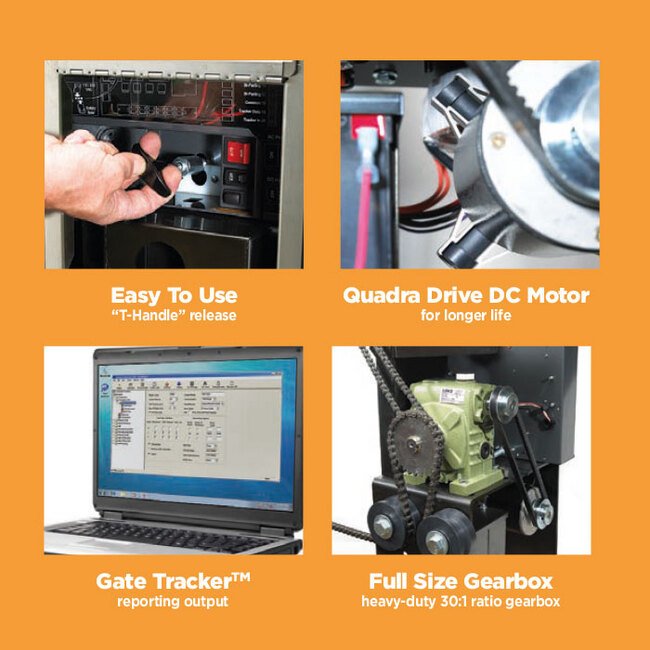

Two 7.2 Ah Batteries standard, 18 Ah batteries optionalPowerful 1/2 HP Quadra Drive motor for long lifeHeavy-duty gearboxHeavy-duty steel frame provides strength and quiet operation"T-Handle" release is easily accessible from front of operatorOperator re-connects automatically when handle is releasedAdjustable limit nuts for precise gate controlAuto-close timer 1-30 secondsSimple bi-parting gate interface (AC powered operators only)Selectable loop/reverse input function; stop or reverseAnti-tailgating feature helps to control un-authorized trafficStandard normally closed stop circuitDC Power Shut-Off switchBattery protection circuitPorts for plug-in open and reverse loop detectors - DKS detectors onlyGate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)AC Powered Operator Only - 115 VAC Convenience outlets, and AC Power Shut-Off switch.DC Powered Operator Only - 0.0 Amp SBPD(Pat Pend) Circuit insures longer battery life.
Options Options
18 Ah Batteries, AC powered operator only (2 required)Plug-in loop detectorsHeater kit for cold environments (AC powered operators only)Secondary entrapment prevention devicesBi-parting gate connection cableGate operator control stationsPostal and Fire Dept lock boxesSurge suppressors, time clocks, traffic signalSteel base plate for post mountSolar Kit (includes two 18 Ah batteries and 10 Watt, 24 VDC solar panel)Nickel plated chain
Specifications Alternating Current Ac Voltage
24 V
Specifications Anti Tailgate Feature
Yes
Specifications Auto Close Timer
1 to 30 s
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Frame Material
Steel
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Manual Release
Yes
Specifications Maximum Gate Length
40 ft
Specifications Maximum Gate Weight
1000 lb
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad/Post
Specifications Note
(Requires Solar Power)
Specifications Operating Temperature
23 to 62 ºC | -10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
No
Specifications Speed
1 ft/s
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Slide
Technical Specifications Technical Specifications

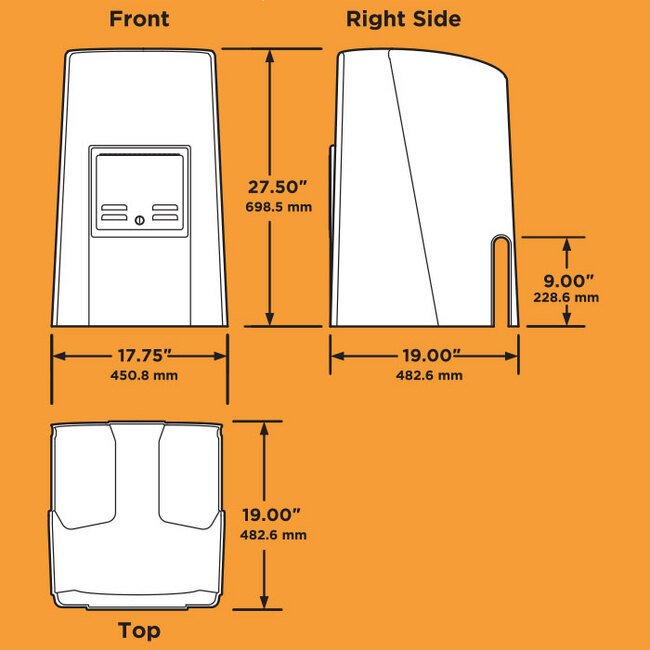

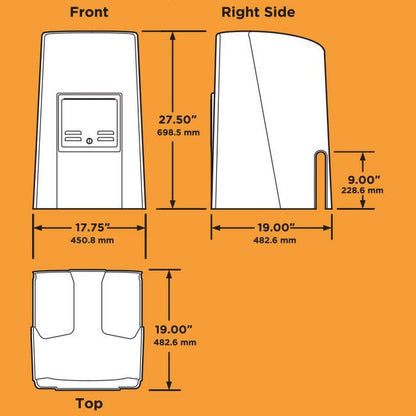

Maximum gate width 40 ft. (12.2 m)Maximum gate weight 1000 pounds (453.6 m). (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)1/2 HP Quadra Drive motor, continuous operation with AC source power available.With battery backup approximately 40 cycles with 7.2 Ah Batteries, 150 cycles w/18 Ah Batteries. Assumes a 16-ft, 1000 Lb gate.Other external factors (temperature, charge state of batteries, gate weight, gate length, etc.) will affect the performance of the gate operator and may reduce the number of cycles.115, 230 VAC input: 1.8 A / 0.9 A or 24 VDC Input 8.0 A.Class I, II, III, IV applicationsCompliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 16.75 "W x 28 "H x 19 "D (42.5cm W x 71cm H x 48.3cm D)
