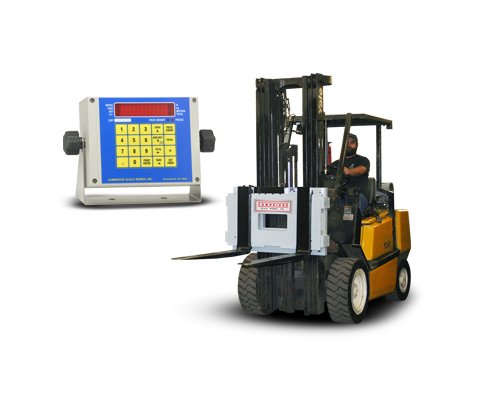

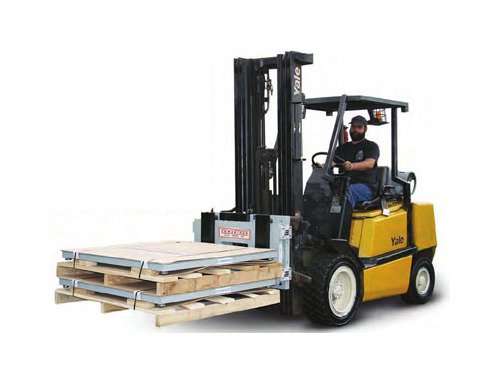

The Cambridge Model: DL-CSW-10AT Lift Truck Scale System allows lift truck operations to quickly and precisely weigh and record individual lifts. This rugged piece of industrial equipment increases productivity and eliminates down time. There is no more waiting to get to a scale in a remote location. Time is money streamline your customer's operation and increase efficiency. Just lift and weigh, the operation never stops. Since Cambridge offers both standard and legal for trade systems. we have the scale for the job.
Product Specifications
Specifications Certifications
National Type Evaluation Program (NTEP) | Made in USA | Measurement Canada
Specifications Class
II

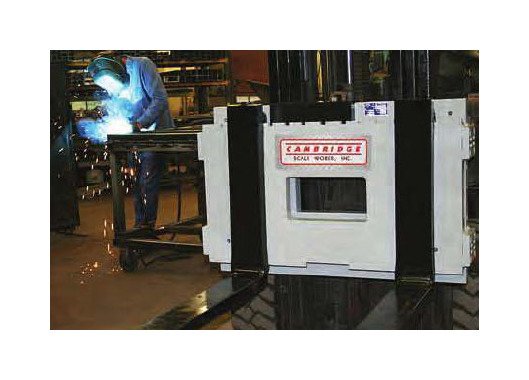

Specifications Dyna Lift Series Standard Features
(12) VDC Operation - Standard | (24-48) VDC Operation - Optional | Hardened Dual Web Stainless Steel Flexures with Integrated Overload and Under load Protection | Hardened Stainless Steel Flexure Rods | large Viewing Port | Rugged, Solid, Plate Steel Construction | Two Environmentally Sealed Load Cells | Urethane Enamel Gray Paint
Specifications Graduation
1
Specifications Industry Standards
Standard (Non-Legal for Trade)
Specifications Lift Capacity
5000 lb

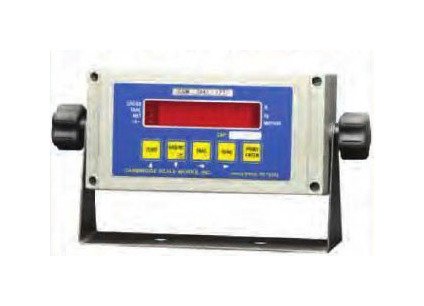

Specifications Model Csw 10at Ltlft Features
(12) VDC Operation - Standard | (24-48) VDC Operation - Optional | Accuracy of 0.1 % of the Applied Loads | Bright 1/2 Inch (in) LED Display | Front Panel Calibration with Audit Trail | Industrial Grade Aluminum, Dust-Tight Enclosure with Swivel Stand | On/Off Switch | RS-232 Port | Weight Totalization | Zero, Gross, Tare, Net and Print Functions
Specifications Optional Dc Operating Voltage
24 to 48 V
Specifications Optional Features
Dyna-Lift Series with CSW-10AT: | Radio Frequency Link (Transmitter and Receiver) | DC Tape Printer | DC Ticket Printer | Severe Service Protection Package | Wet Environment Package - NEMA IV Rated | Non-Standard Widths (Consult Factory) | 24 VDC - 48 VDC Operation with Power Conditioning
Specifications Overall Length
30 in | 36 in
Specifications Overall Width
16 in
Specifications Standard Dc Operating Voltage
12 V
Specifications Warranty
Cambridge Scale Works, Inc. will warrant this product for one full year against defects in material and/or workmanship.
