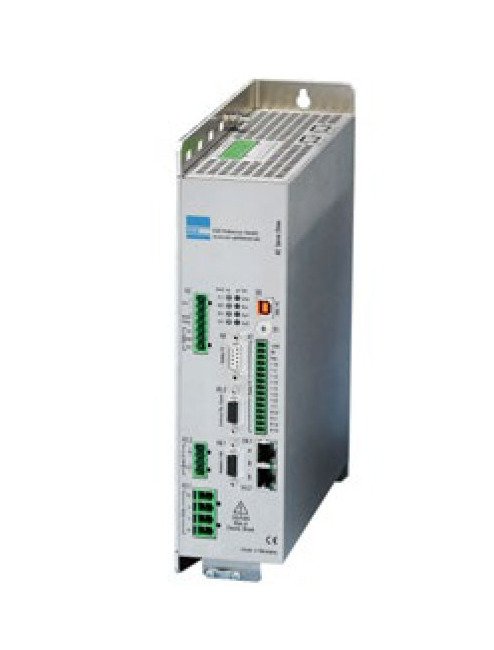

The DME Series 22A Digital Servo Controller by Dunkermotoren is a versatile solution designed for Servo Tube SA & SC 38 series, offering a peak output current of 22 A and continuous 8 A RMS output. It supports slave operation modes and features a Universal Serial Bus (USB) / Controller Area Network (CANopen) standard interface for seamless connectivity. With a Safety Torque Off function, integrated brake resistor, and efficient operation at 97.8%, this servo controller ensures high-performance motion control in industrial applications. It also complies with European Conformity (CE) standards and safety indices according to various ISO standards.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuit
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
8 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.8 %
Technical Specs Frequency
50 to 60 Hz

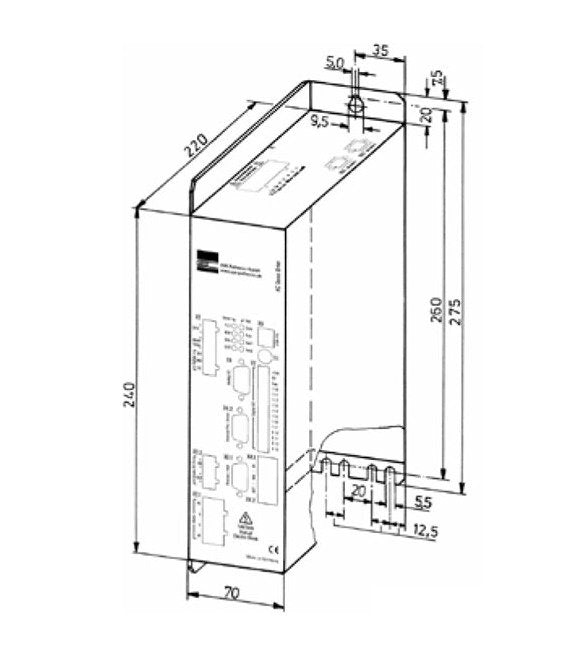

Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
560 to 680 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
3 x 400 to 480 V
Technical Specs Operation Modes
Slave
Technical Specs Peak Output Current
22 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
Controller Area Network (CANopen) | Universal Serial Bus (USB)
Technical Specs Weight
2.8 kg
Technical Specs Width
275 mm
