DME Series Digital Servo Controller
DME Series Digital Servo Controller
SKU:DME-7da01c
Experience peak performance with the DME Series Digital Servo Controller, featuring 22A peak output current and stand-alone/slave operation modes for precise control.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DME Series Digital Servo Controller
$899.99
Quantity: 1
Claim Your Seller Account
DME Series Digital Servo Controller
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

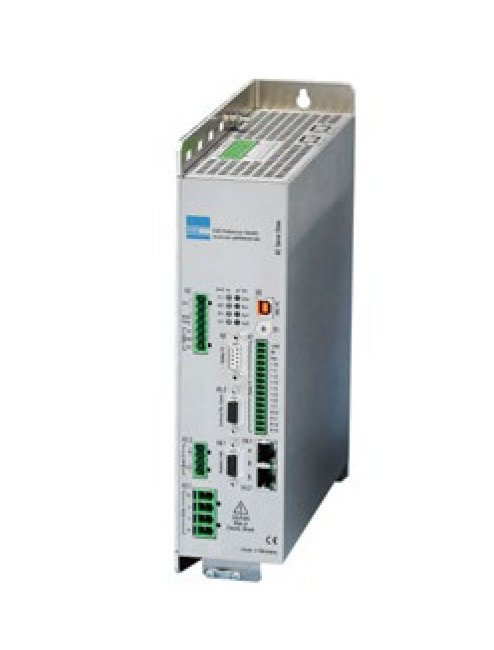

The DME Series Digital Servo Controller by Dunkermotoren delivers exceptional performance with a peak output current of 22A. Ideal for servo tube applications, it supports stand-alone and slave operation modes. Equipped with a Universal Serial Bus (USB) and Controller Area Network (CANopen) standard interface, this controller ensures seamless integration and precise control. Safety features like Safety Torque Off function (STO) enhance operational reliability, while the configuration software and integrated brake resistor streamline setup and maintenance.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuit
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
8 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.8 %
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
560 to 680 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
3 x 400 to 480 V
Technical Specs Operation Modes
Stand Alone and Slave
Technical Specs Peak Output Current
22 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
Controller Area Network (CANopen) | Universal Serial Bus (USB)
Technical Specs Weight
2.8 kg
Technical Specs Width
275 mm
