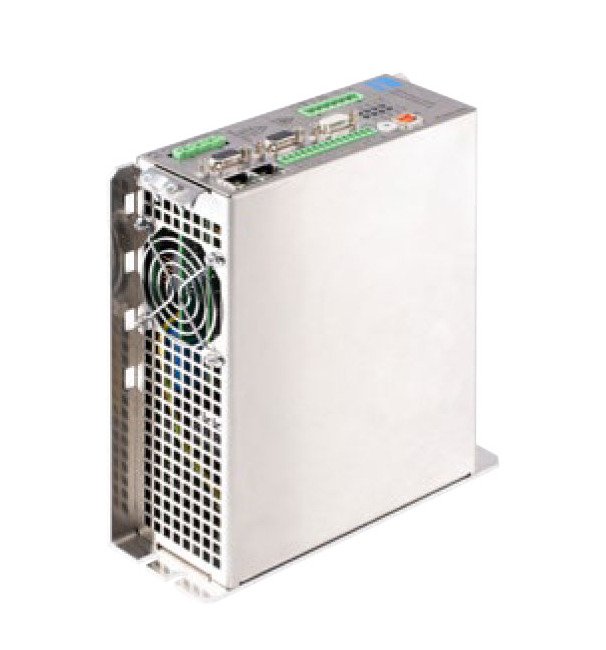

DME Series Digital Servo Controller - 17A Peak Output, Slave Mode, USB/EtherCAT Interface

Name: DME Series Digital Servo Controller - 17A Peak Output, Slave Mode, USB/EtherCAT Interface
Brand: Dunkermotoren
SKU: DME-f5ba4a
Price: 349.99 USD
Availability: OutOfStock

SKU:DME-f5ba4a

Enhance servo system performance with the DME Digital Servo Controller - 17A Peak Output, Slave Mode, USB/EtherCAT Interface

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DME Series 17 Ampere Peak Output Current Digital Servo Controller is a versatile solution designed for servo systems. It supports Slave Operation Mode, ensuring seamless integration with existing setups. Equipped with a Universal Serial Bus (USB) and EtherCAT Standard Interface, this controller offers precise control and reliable performance. With features like Safety Torque Off (STO) function, feedback inputs for linear encoders, and integrated brake resistor, it enhances system safety and efficiency. Compliant with European Conformity (CE) standards, this controller ensures reliable operation and adherence to industry regulations.

Product Specifications

Features Features

IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuitEPLAN Data Portal

Note Note

Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508

Technical Specs Brands

Dunkermotoren

Technical Specs Continuous Consumption Electronic

0.4 A

Technical Specs Continuous Root Mean Square Rms Output Current

4 A

Technical Specs Digital Input

Technical Specs Digital Output

Technical Specs Efficiency At Rated Operation

97.2 %

Technical Specs Frequency

50 to 60 Hz

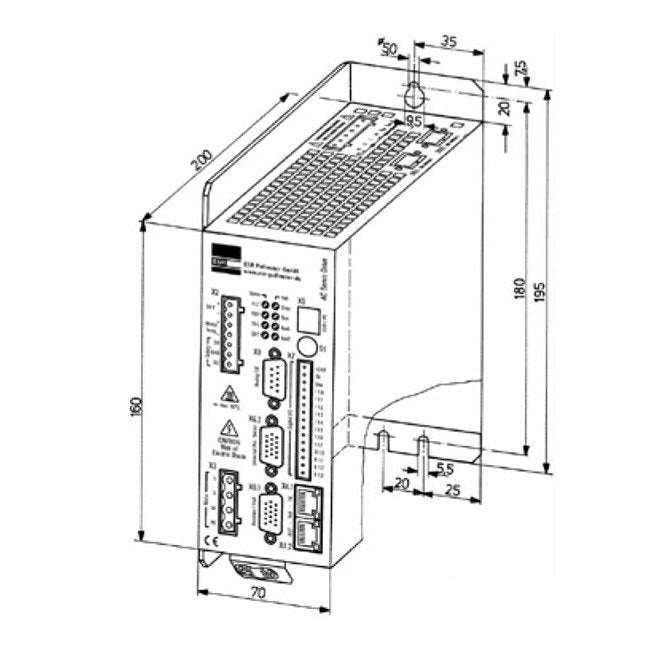

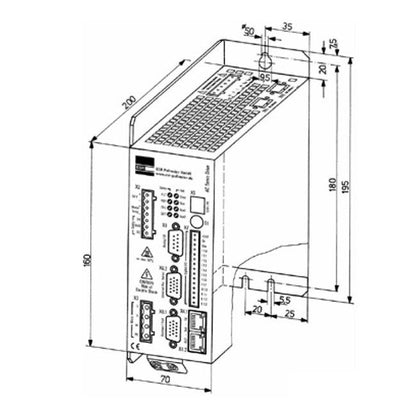

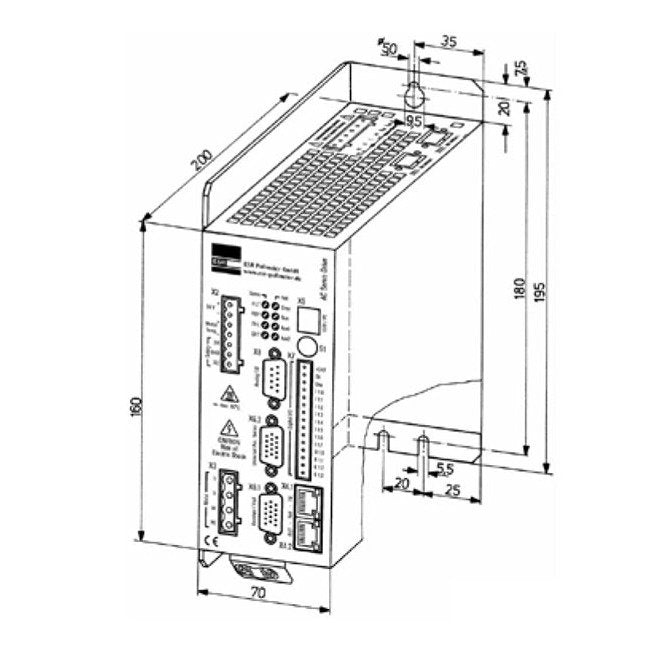

Technical Specs Height

200 mm

Technical Specs Industry Standardscertifications

European Conformity (CE)

Technical Specs Length

70 mm

Technical Specs Motor Feedback For Bg Motors

Magnetic Rotary (MR) Encoder

Technical Specs Motor Feedback Inputs For Servo Tube

Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)

Technical Specs Nominal Direct Current Dc Bus Voltage

325 V

Technical Specs Nominal Electronic Supply Direct Current Dc Volt

24 V

Technical Specs Nominal Power Supply Alternating Current Ac Volt

230 V

Technical Specs Operation Modes

Slave

Technical Specs Peak Output Current

17 A

Technical Specs Series

DME

Technical Specs Standard Interfaces

EtherCAT | Universal Serial Bus (USB)

Technical Specs Weight

1.6 kg

Technical Specs Width

195 mm
