DME Series Digital Servo Controller with 17A Peak Output Current

Name: DME Series Digital Servo Controller with 17A Peak Output Current
Brand: Dunkermotoren
SKU: DME-b84503
Price: 349.99 USD
Availability: OutOfStock

SKU:DME-b84503

High-performance DME Series Digital Servo Controller with 17A peak output current, versatile interfaces, and advanced safety features.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

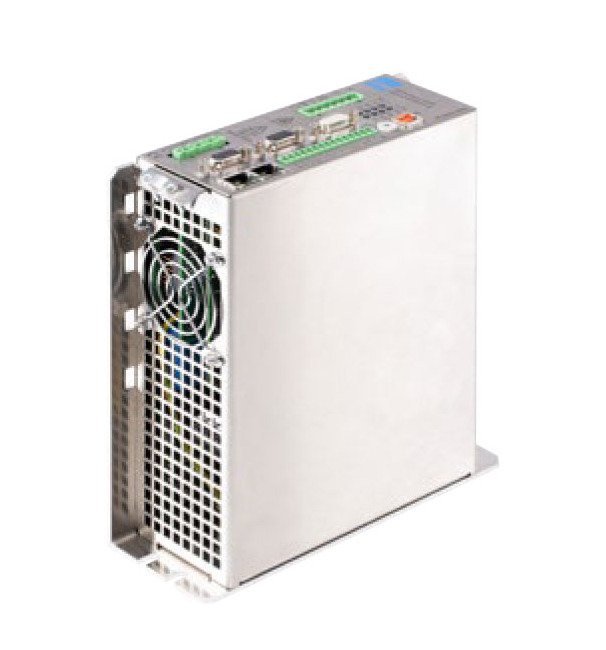

The DME Series Digital Servo Controller is a high-performance solution designed for precise control of Servo Tube 25/38 series and BG 66, BG 75, BG 95 dCore motors. With a peak output current of 17A and versatile interface options including CANopen and USB, this controller excels in both standalone and slave operations. Featuring safety torque off function, feedback inputs for linear encoders, and integrated brake resistor, it ensures efficient and safe operation. Compliant with European Conformity (CE) standards, this controller offers a range of operation modes, digital inputs/outputs, and advanced features like oscilliscope software, making it ideal for industrial applications.

Product Specifications

Features Features

IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuitEPLAN Data Portal

Note Note

Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508

Technical Specs Brands

Dunkermotoren

Technical Specs Continuous Consumption Electronic

0.4 A

Technical Specs Continuous Root Mean Square Rms Output Current

4 A

Technical Specs Digital Input

Technical Specs Digital Output

Technical Specs Efficiency At Rated Operation

97.2 %

Technical Specs Frequency

50 to 60 Hz

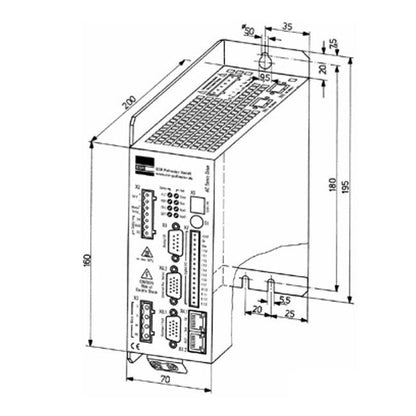

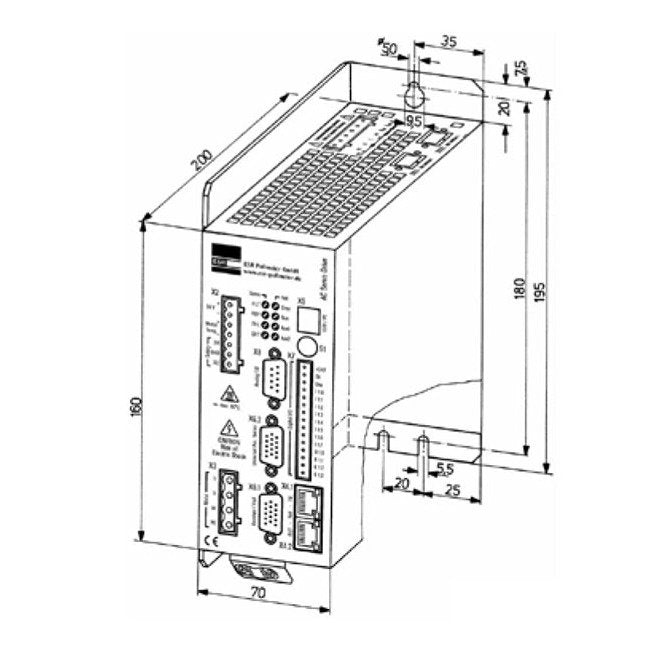

Technical Specs Height

200 mm

Technical Specs Industry Standardscertifications

European Conformity (CE)

Technical Specs Length

70 mm

Technical Specs Motor Feedback For Bg Motors

Magnetic Rotary (MR) Encoder

Technical Specs Motor Feedback Inputs For Servo Tube

Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)

Technical Specs Nominal Direct Current Dc Bus Voltage

325 V

Technical Specs Nominal Electronic Supply Direct Current Dc Volt

24 V

Technical Specs Nominal Power Supply Alternating Current Ac Volt

230 V

Technical Specs Operation Modes

Slave

Technical Specs Peak Output Current

17 A

Technical Specs Series

DME

Technical Specs Standard Interfaces

Controller Area Network (CANopen) | Universal Serial Bus (USB)

Technical Specs Weight

1.6 kg

Technical Specs Width

195 mm
