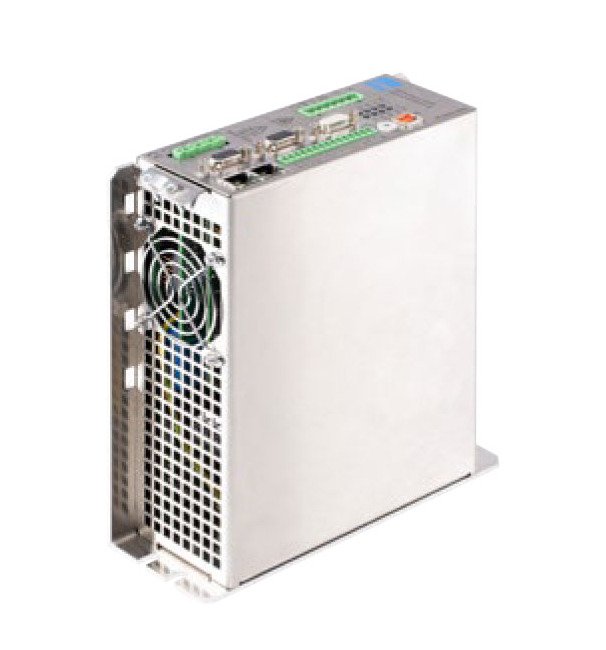

DME Series Universal Digital Servo Controller
DME Series Universal Digital Servo Controller
SKU:DME-9b9a47
Experience precision control with the DME Series Universal Digital Servo Controller. Peak output current of 17A, USB/CANopen interface, and advanced safety features ensure reliable performance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
DME Series Universal Digital Servo Controller
$549.99
Quantity: 1
Claim Your Seller Account
DME Series Universal Digital Servo Controller
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

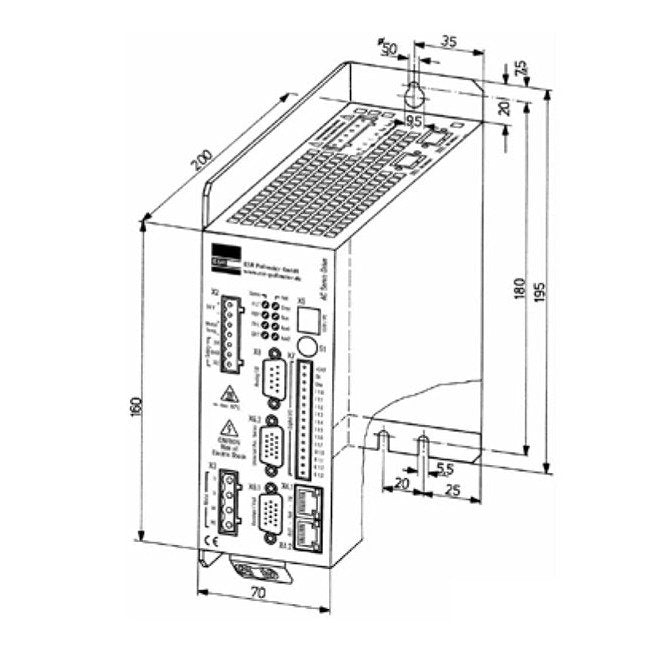

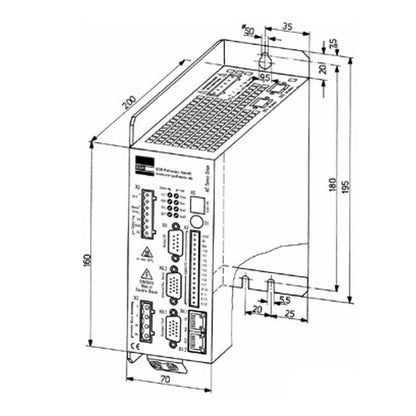

The DME Series Universal Digital Servo Controller is a versatile solution designed for precise control in servo applications. With a peak output current of 17A and support for stand-alone and slave operation modes, this controller ensures efficient and reliable performance. Equipped with a Universal Serial Bus (USB) and Controller Area Network (CANopen) standard interface, this controller offers seamless connectivity and compatibility. Additionally, it boasts features like safety torque off function (STO), feedback inputs for linear encoders, and integrated brake resistor, enhancing overall operational safety and efficiency. Measuring 70mm x 195mm x 200mm and weighing 1.6kg, this compact controller is ideal for various industrial applications.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuitEPLAN Data Portal
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
4 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.2 %
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
325 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
230 V
Technical Specs Operation Modes
Stand Alone and Slave
Technical Specs Peak Output Current
17 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
Controller Area Network (CANopen) | Universal Serial Bus (USB)
Technical Specs Weight
1.6 kg
Technical Specs Width
195 mm
