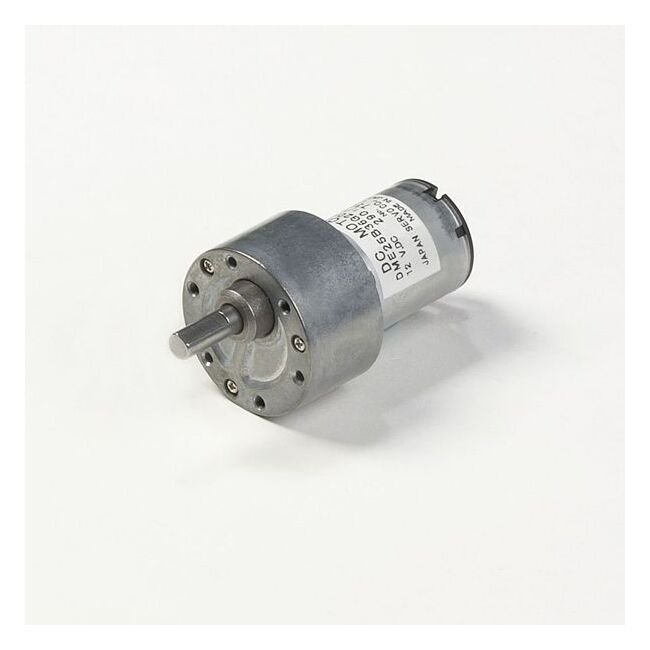

DME25 Series DC Motor with Gearbox 36G
DME25 Series DC Motor with Gearbox 36G
SKU:PER-df42ba
High-performance DME25 Series DC Motor with Gearbox 36G for precise intermittent drive applications. Rated at 12V, 3.0W.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 36G
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 36G
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series DC Motor with Gearbox 36G is a high-performance gear head designed for intermittent drive applications. With a compact motor frame size of 37mm and a gear ratio of 30, this motor delivers a rated speed of 193 r/min and a rated torque of 15.28 oz·in. Operating at 12V and 3.0W, it offers precise control with a current rating of 470mA. The gear-head design ensures efficient power transmission, making it ideal for various industrial and institutional uses. Note: The rotation of the gearbox shaft is in reverse of the motor's rotation.
Product Specifications
Additional Information 0
DME25 Series Motors with Gearbox 36G (DME25B36G) | Gear-Head Design | Motor Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
30
Specifications L1
54.8 mm | 2.157 in
Specifications L2
22.3 mm | 0.878 in
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
3.0 W
Specifications Rated Speed
193 r/min
Specifications Rated Torque
15.28 oz·in | 0.10 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
