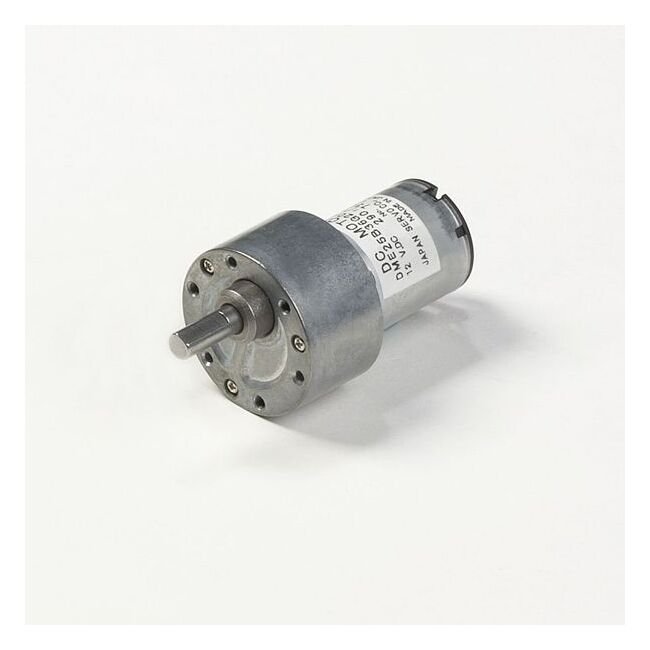

DME25 Series DC Motor with Gearbox 36G
DME25 Series DC Motor with Gearbox 36G
SKU:PER-c474a1
High-performance DC motor with gearbox for precise intermittent drive applications, meets institutional standards
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 36G
$69.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 36G
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series DC Motor with Gearbox 36G is a high-quality solution designed for intermittent drive applications. With a compact motor frame size of 37mm, a gear ratio of 600, and a rated output of 3.0W, this motor delivers reliable performance with a rated torque of 55.55 oz·in. Ideal for industrial settings requiring precision control, this motor meets rigorous institutional procurement standards and offers exceptional durability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME25 Series Motors with Gearbox 36G (DME25B36G) | Gear-Head Design | Motor Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
600
Specifications L1
62.3 mm | 2.453 in
Specifications L2
29.8 mm | 1.173 in
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
3.0 W
Specifications Rated Speed
12.4 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
180 g | 0.40 lb
