DME25 Series DC Motor with Gearbox 36G - Efficient Gear Head Solution
DME25 Series DC Motor with Gearbox 36G - Efficient Gear Head Solution
SKU:PER-c3ffdb
Efficient DME25 Series DC Motor with Gearbox 36G for reliable intermittent drive - compact and powerful.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 36G - Efficient Gear Head Solution
$59.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 36G - Efficient Gear Head Solution
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

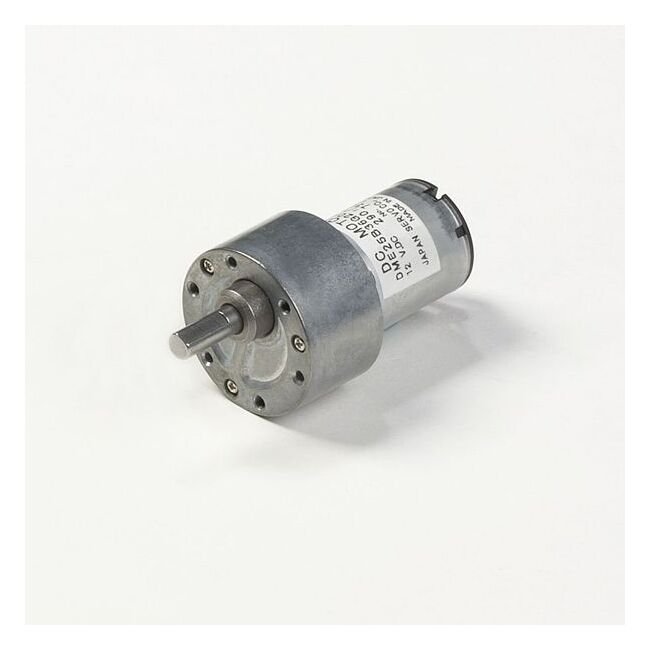

The DME25 Series Motor with Gearbox 36G is a high-quality DC motor designed for intermittent drive applications, offering a reliable and efficient solution. With a motor frame size of 37mm, gear ratio of 10, and rated voltage of 24V, this motor delivers a rated output of 3.0W and a rated torque of 5.55 oz·in, meeting the needs of various industrial settings. Its compact design, weighing only 160g, ensures easy integration into different systems. The gear-head design of the DME25B36G model provides precision and durability, making it a top choice for both consumer and institutional buyers.
Product Specifications
Additional Information 0
DME25 Series Motors with Gearbox 36G (DME25B36G) | Gear-Head Design | Motor Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
10
Specifications L1
52.3 mm | 2.059 in
Specifications L2
19.8 mm | 0.78 in
Specifications Model Code
BB
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
3.0 W
Specifications Rated Speed
580 r/min
Specifications Rated Torque
5.55 oz·in | 0.04 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
