DME25 Series DC Motor with Gearbox 36G - High Torque 12V Gear Head Motor
DME25 Series DC Motor with Gearbox 36G - High Torque 12V Gear Head Motor
SKU:PER-fdd150
Compact DME25 Series DC Motor with Gearbox 36G - Ideal for precise intermittent drive applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 36G - High Torque 12V Gear Head Motor
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 36G - High Torque 12V Gear Head Motor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

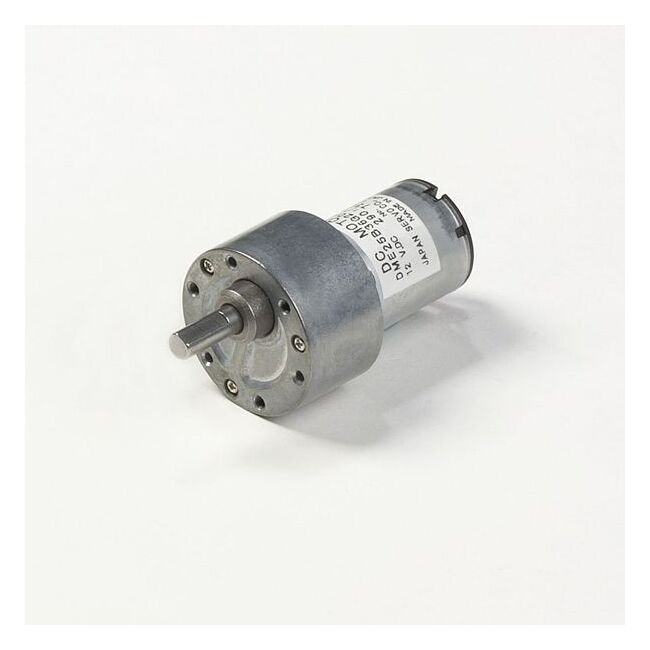

The DME25 Series DC Motor with Gearbox 36G delivers reliable performance in a compact design. With a sturdy 37mm motor frame and a gear ratio of 400, this motor offers a rated torque of 55.55 oz·in, making it ideal for applications requiring precise control. Operating at 12V with a rated output of 3.0W, this motor ensures efficient power delivery at a rated speed of 17.9 r/min. Weighing only 180g, the DME25B36G is a versatile solution for tasks requiring intermittent drive with a gear-head design. Customize your design for specific requirements with our motor selection guide.
Product Specifications
Additional Information 0
DME25 Series Motors with Gearbox 36G (DME25B36G) | Gear-Head Design | Motor Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
400
Specifications L1
62.3 mm | 2.453 in
Specifications L2
29.8 mm | 1.173 in
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
3.0 W
Specifications Rated Speed
17.9 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
180 g | 0.40 lb
