DME25 Series DC Motor with Gearbox 43G
DME25 Series DC Motor with Gearbox 43G
SKU:PER-585189
Efficient DME25 Series DC Motor with Gearbox 43G for precise intermittent drive. Suitable for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 43G
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 43G
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

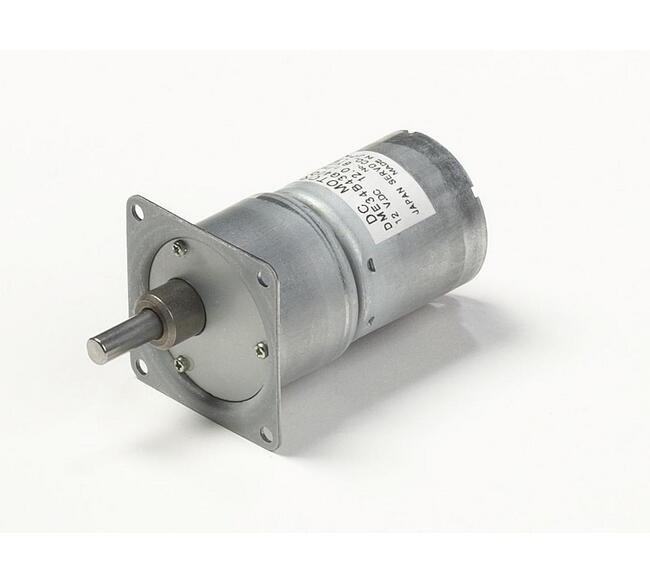

The DME25 Series DC Motor with Gearbox 43G is designed for intermittent drive applications, offering reliable performance and precision. This motor features a Motor Frame Size of 43 x 43 mm, a Gear Ratio of 20, and a Rated Torque of 10.14 oz·in, making it ideal for various industrial tasks. With a DC 24V Rated Voltage and a Rated Output of 3.0W, this motor ensures efficiency and consistent power delivery. The gear-head design and reverse rotation feature enhance operational flexibility and control, catering to the needs of both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
20
Specifications L1
53.3 mm | 2.098 in
Specifications L2
20.8 mm | 0.819 in
Specifications Model Code
BB
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
290 r/min
Specifications Rated Torque
10.14 oz·in | 0.071 N·m
Specifications Rated Voltage
DC 24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
