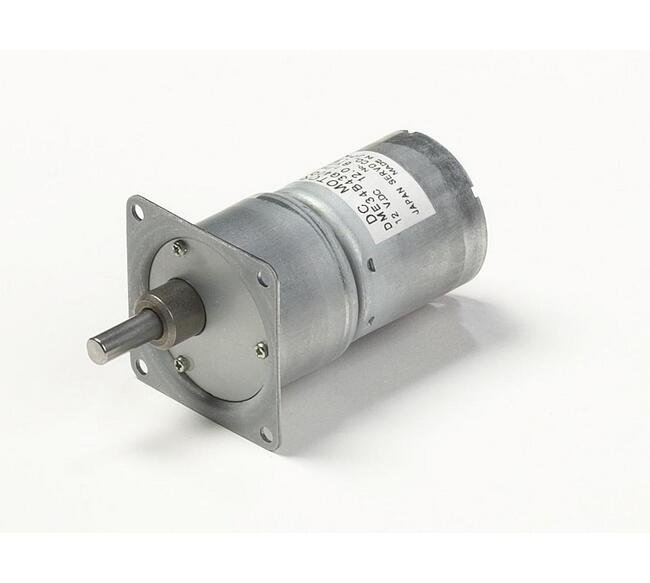

DME25 Series DC Motor with Gearbox 43G for Intermittent Drive
DME25 Series DC Motor with Gearbox 43G for Intermittent Drive
SKU:PER-d7c7ec
Compact DME25 Series DC Motor with Gearbox 43G for precise intermittent drive applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 43G for Intermittent Drive
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 43G for Intermittent Drive
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series Motor with Gearbox 43G is a high-performance solution designed for intermittent drive applications. With a compact motor frame size of 43 x 43 mm and a gear ratio of 400, this DC motor delivers a rated speed of 17.9 r/min and a rated torque of 55.55 oz·in, providing reliable and efficient operation. Rated at DC 12V with a rated output of 3.0W, this motor offers precise control and consistent performance. Ideal for various industrial settings, this motor meets stringent quality standards and ensures durability and longevity in operation.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
400
Specifications L1
60.8 mm | 2.394 in
Specifications L2
28.3 mm | 1.114 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
17.9 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
